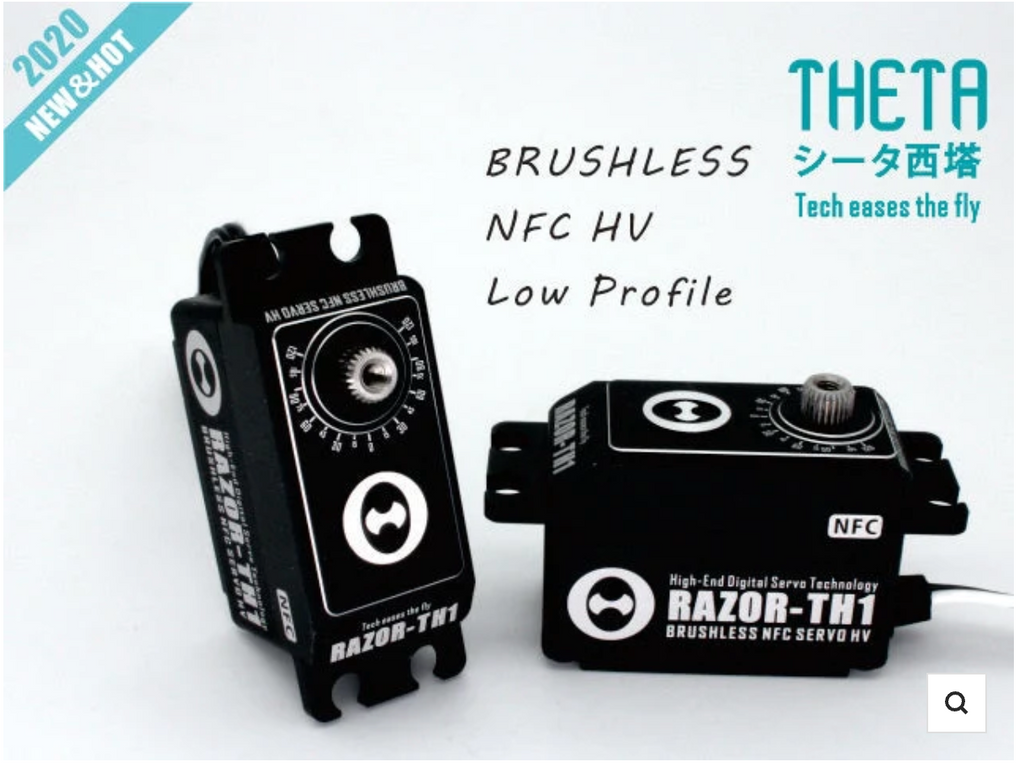

THETA RAZOR-TH1 NFC HV LOW PROFILE BRUSHLESS TAIL SERVO
THETA RAZOR-TH1 NFC HV LOW PROFILE BRUSHLESS TAIL SERVO

THETA RAZOR-TH1 NFC HV LOW PROFILE BRUSHLESS TAIL SERVO

SKU: TS-RTH1
Regular price
Sold out/On Order ($145.19 CAD)
Sale price
$145.19 CAD
Unit price
per

High voltage, High-Torque, low profile size brushless servo.
Ideal tail servo for 600-700 sized machines.

The Theta servos are at the top of their class due to their ability to be fully programmed via an Android NFC enabled smart phone. You can adjust things such as the center point, refresh rate, acceleration, as well as the PID control loop of the servo. You can make it feel however you want it to!

Voltage (V)

Current (A)

Speed (s/60°)

Torque (kg*cm)

5.0

3.0

0.087

19

6.0

3.0

0.072

21

7.4

3.0

0.064

23

8.4

3.0

0.056

24





5.0

5.0

0.079

22

6.0

5.0

0.065

26

7.4

5.0

0.058

28

8.4

5.0

0.051

30
