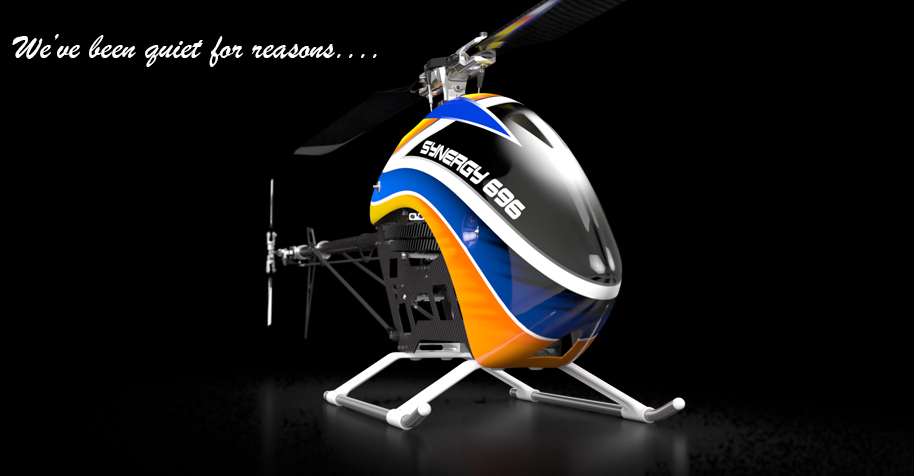

Synergy 696 Kit

Synergy 696 Kit

SKU: 999 696
Regular price
$1,168.70
Sale price
$1,168.70
Unit price
per

FEATURES:

• CNC machined 6061-T6 aluminum and Delrin components
• 2mm Carbon Fiber frame components
• 182mm full head width
• Extra wide head block for quick cyclic response and high stability
• Machined Delrin helical main drive for quiet, efficient power transfer
• Machined Delrin helical tail drive
• One-piece aluminum front tail transmission
• Efficient torque tube tail drive
• 12mm main shaft with triple support radial bearings
• 10mm head axle with pivot rocker and quad progressive dampers
• 6mm tail shaft with HD tail hub and HD grips
• Turnbuckle linkages for quick/precise adjustments
• CG adjustable Quick-Change locking battery tray system

SPECIFICATIONS:

• Motor: 700 class electric
• Main Blades: 696-716mm
• Tail Blades: 106-116mm
• Cyclic/Tail Servos: Full Size HV
• Main Ratio: 9.93-11.58 (13T included; 10.69:1)
• Tail Ratio: 4.70-5.08:1 (27T included; 4.70:1)
• Main Rotor Diameter: 1574mm (with Rail 696mm)
• Tail Rotor Diameter: 298mm (with Rail 116mm)

Official SYNERGY TESTED EQUIPMENT:

• Cyclic servos: Futaba BLS273/275 and MKS X6/575SL
• Tail servo: Futaba BLS276 and MKS HBL990 (Narrow-band, 560hz/760us)
• Flybarless system: CGY750/760 or Vbar/NEO
• Main blades: Rail 696mm
• Tail blades: Rail 116mm
• Stock 13T pinion: 1950-2150 RPM
• Stock 27T tail drive
• Motor: Scorpion HK4525-520 or larger
• ESC: Scorpion 200A; Castle Edge 160HV; Hobbywing 130A Platinum
• All high-voltage capable servos powered via internal ESC BEC
• Flight battery pack: 4400-5000 12S

  • Model: 999-696
  • Manufactured by: Synergy
