Description

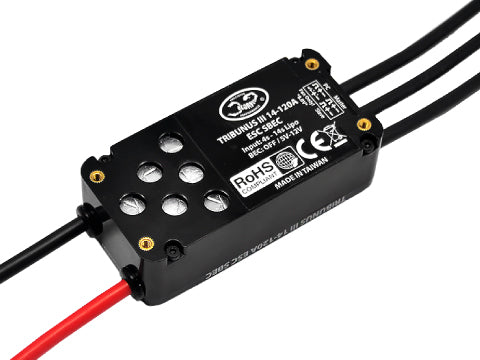

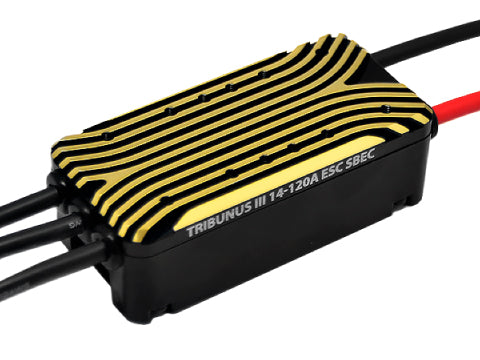

The Tribunus III 14-120A ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components and manufactured in Taiwan, this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market foe your hobby aircraft or industrial UAV.
Specifications
| Max Continuous Current | 120 Amps |
| Peak Current | 150 Amps |
| Operating Voltage Range | 12 - 61.0 Volts |
| BEC Output voltage: | 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 10 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| On Resistance | 0.6mOhms * 2 |

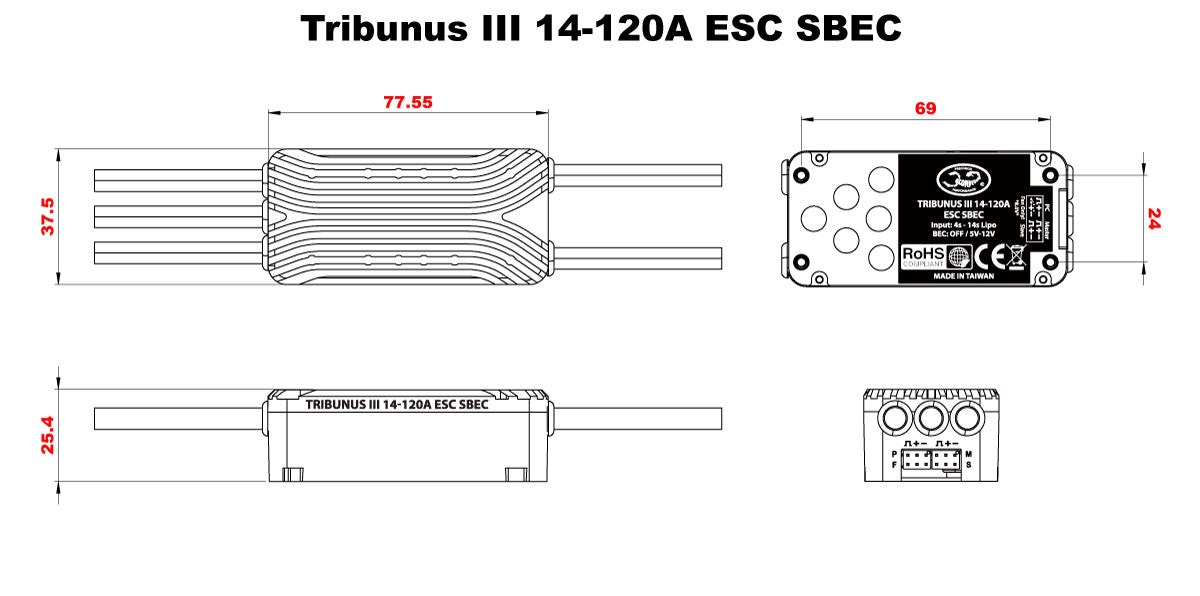

| ESC Body Size | 39.4 x 79.4 x 23.5 mm (1.55 x 3.12 x 0.92 in) |
| Integrated Mount Dimensions | 26.0 x 72.0mm ( 1.0 x 2.83 in) / M2.5 Bolt |
| Weight (without wires) | 115g (4.0oz) |
| Weight (with wires) | 145g ( 5.11oz) |
| Drive frequency | 8kHz - 32kHzDynamic Frequency |
| Cable gauge | 12awg |
| Max Electrical RPM | 240,000RPM |
| *Max Continuous Current is the rating at 100% throttle for 60 seconds with 35m/s of airflow | |

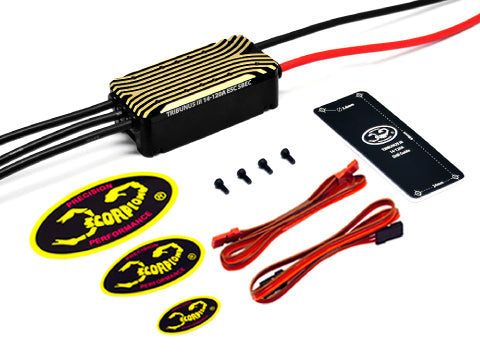

Included in the Box
1 x Tribunus III ESC
2 x BEC Cables
1 x Mounting Hardware Pack
1 x Drill Guide
