Description
Specifications
Max Continuous Current | 110 Amps |
Peak Current | 150 Amps |
Operating Voltage Range | 11-26.1 Volts |
BEC Output voltage: | 5.1V to 12.1V adjustable |
Max Continuous BEC Output | 10 Amps @ 8.1 V |
Peak BEC Output | 20 Amps/1s @ 8.1 V |
On Resistance | 0.45mohms * 2 |
ESC Body Size | 32.0 x 52.5 x 23.1 mm (1.26 x 2.07 x 0.91 in) |
Mounting Tab Dimensions | 16.0 (Battery Side) / 24.0mm (Phase side) x 58.0mm ( 0.63 / 0.94 x 2.28 in) / M2.5 Bolt |
Weight (Without Connectors) | 105g ( 3.70oz) |
Drive frequency | 8kHz - 32kHz |

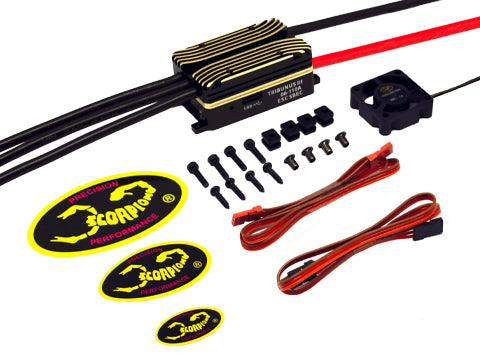

Included in the Box

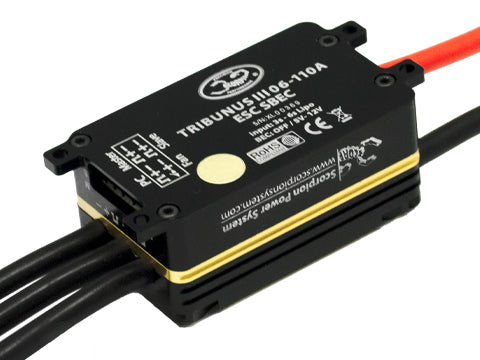

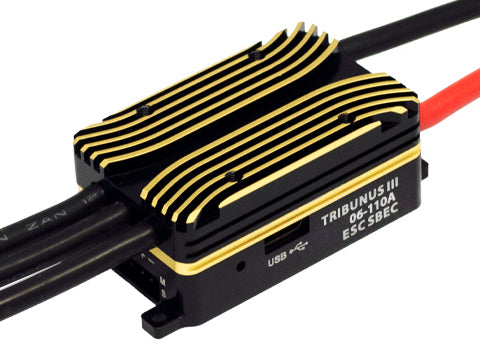

1 x Tribunus III ESC

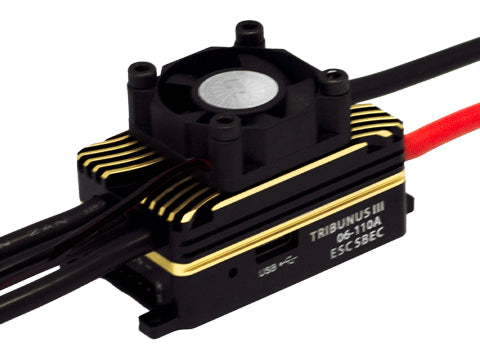

1 x 30mm Cooling Fan
2 x BEC Cables
