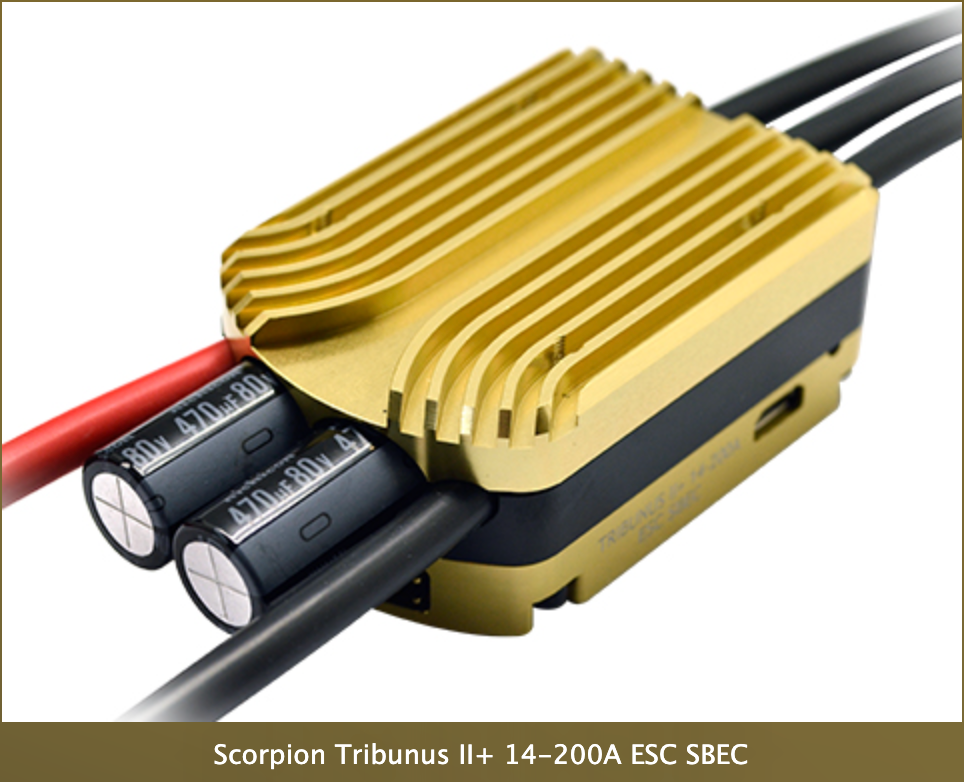

Scorpion Tribunus II+ 14-200A ESC SBEC New Release Version

Scorpion Tribunus II+ 14-200A ESC SBEC New Release Version

SKU: TribunusII_14_200A
Regular price
Sold out/On Order ($748.99 CAD)
Sale price
$748.99 CAD
Unit price
per

Product Description

Airplane and Heli mode,

Stored and unstored Governor, external governor.

Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 and Futaba.

ESC setup can be set by Mikado V control Radio.

PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(optional) cable needed.

Supported HvLi battery 14S total 61V **.

Size: 86.7mm x 45mm x 27.6mm

Weight: 224 Grams.

Specifications

Max Continuous Current 200 Amps
Peak Current 250Amps
Operating Voltage Range 14-61 Volts
BEC Output voltage: 5.1V to 8.3V adjustable.
Max Continuous BEC Output 10 Amps @ 8.3 V
Peak BEC Output 20 Amps/1s @ 8.3 V
On Resistance 0.55 mOhms *2
Size 86.7 x 45 x 27.6 mm (3.41 x 1.77 x 1.08 in)
Weight (Without Connectors) 224g (7.9 oz)
Drive frequency 8kHz - 32kHz
Cable gauge
