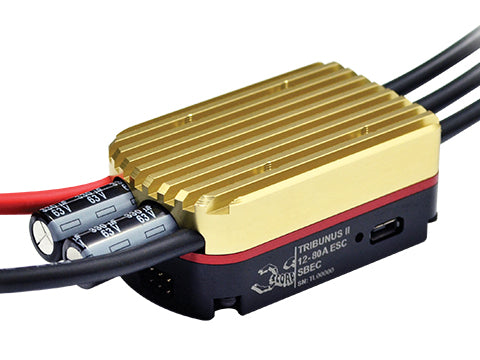

Scorpion Tribunus II 12-80A ESC SBEC

Mikado USASKU: ESC 0022

Price:
Sale price$274.00 USD

Description

Product Description

Airplane and Heli mode,

Stored and unstored Governor, external governor.

Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 ( more compatible device will be added gradually like Futaba..etc.)

ESC setup can be set by Mikado V control Radio.

PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.

Supported HvLi battery 12S total 52V.

Size: 76.7 x 36.5 x 25.4 mm

Weight: 120 Grams.


Scorpion Tribunus ESC {Tutorial} - Connecting to PC or MAC + Downloading SProto + Firmware Updates. Produced by Kyle Dahl

Mikado Proving Ground Produced by Kyle Dahl

Bobby Watts show you how to set up the Tribunus 14-200A ESC and Demonstration flight by Kyle Stacy

 Scorpion Tribunus II 12-80A - User Manual

 Scorpion Tribunus Heli Program Sproto

 Scorpion V Link II Cable CH340 Driver (For all ESC use)

 How to update Tribunus firmware

 How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO

 How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Jeti

 DIY your spark suppressor system on a ESC

Scorpion Tribunus II 12-80A ESC SBEC

Specifications

Max Continuous Current 80 Amps
Peak Current 100 Amps
Operating Voltage Range 14-52 Volts
BEC Output voltage: 5.1V to 8.1V adjustable.
Max Continuous BEC Output 10 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
On Resistance 0.4 mOhms *2
Size 76.7 x 36.5 x 25.4 mm (3.02 x 1.44 x 1 in)
Weight (Without Connectors) 120g (4.23 oz)
Drive frequency 8kHz - 32kHz

Weight including packaging

250g
