Description

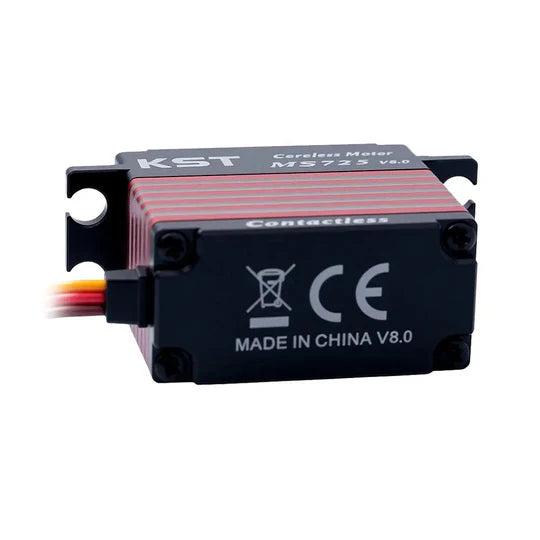

The MS725 V8.0 HV Digital Coreless Servo is designed for 550 & 700 class RC helicopters, delivering up to 20 kgf.cm torque and a fast 0.07sec/60° response. Featuring a coreless motor, dual ball bearings, hardened steel gears, and a contactless hall sensor for durability and smooth operation. With programmable travel angle and soft start, CNC aluminium alloy case for efficient heat dissipation. The MS725 V8.0 is perfect for high-performance flying.
Features
- High Torque & Exceptional Speed
- Large Default Travel Angle (programmable)
- Dual Ball Bearings
- High Performance Coreless DC Motor
- Contactless Hall Sensor
- Hardened Steel Gear
- Ideal for 550 & 700 Size RC Helicopter
Specification
- Item: MS725 V8.0 Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Stalling Torque: 15Kgf.cm@6.0V, 18Kgf.cm@7.4V, 20Kgf.cm@8.4V
- No-load Speed: 0.09sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±100°=200° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Contactless
- Ball Bearing: 2BB
- Case Dimensions: 40.5*20*38mm±0.2mm
- Weight: 70g±10%
