| SKU | MKS-HBL599 | |
| Dead Band | 0.0008ms (Default) | |
| Control System | +Pulse Width Control | |
| Working Frequence | 1520μs / 333hz | |
| Operating Voltage | 3.5 ~ 8.4 Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (6V) | 0.11 sec/60° degrees at no load | |
| Operating Speed (7.4V) | 0.09 sec/60° degrees at no load | |
| Operating Speed (8.4V) | 0.08 sec/60° degrees at no load | |
| Stall Torque (6V) | 416.62 oz/in (30 kg/cm) | |
| Stall Torque (7.4V) | 527.72 oz/in (38 kg/cm) | |
| Stall Torque (8.4V) | 583.27 oz/in (42 kg/cm) | |
| Motor Type | Brushless Motor | |
| Potentiometer Drive | Indirect Drive | |
| Bearing Type | 12x8 mm Double bearings | |
| Gear Type | Chrome-Titanium alloy gear | |
| Connector Wire Length | 24.0 cm (9.4 in) | |

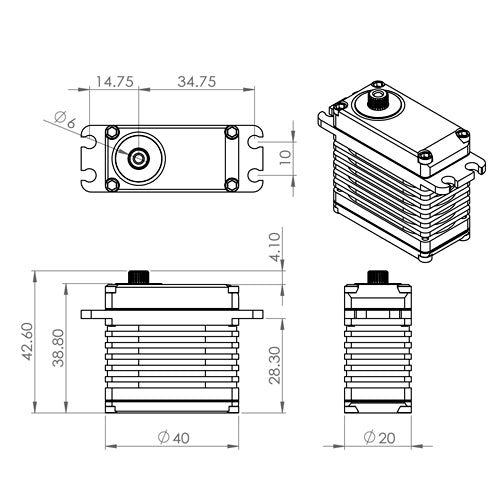

| Dimensions | 40 x 20 x 38.5 mm | |
| Weight | 73.12 g | |
