Description

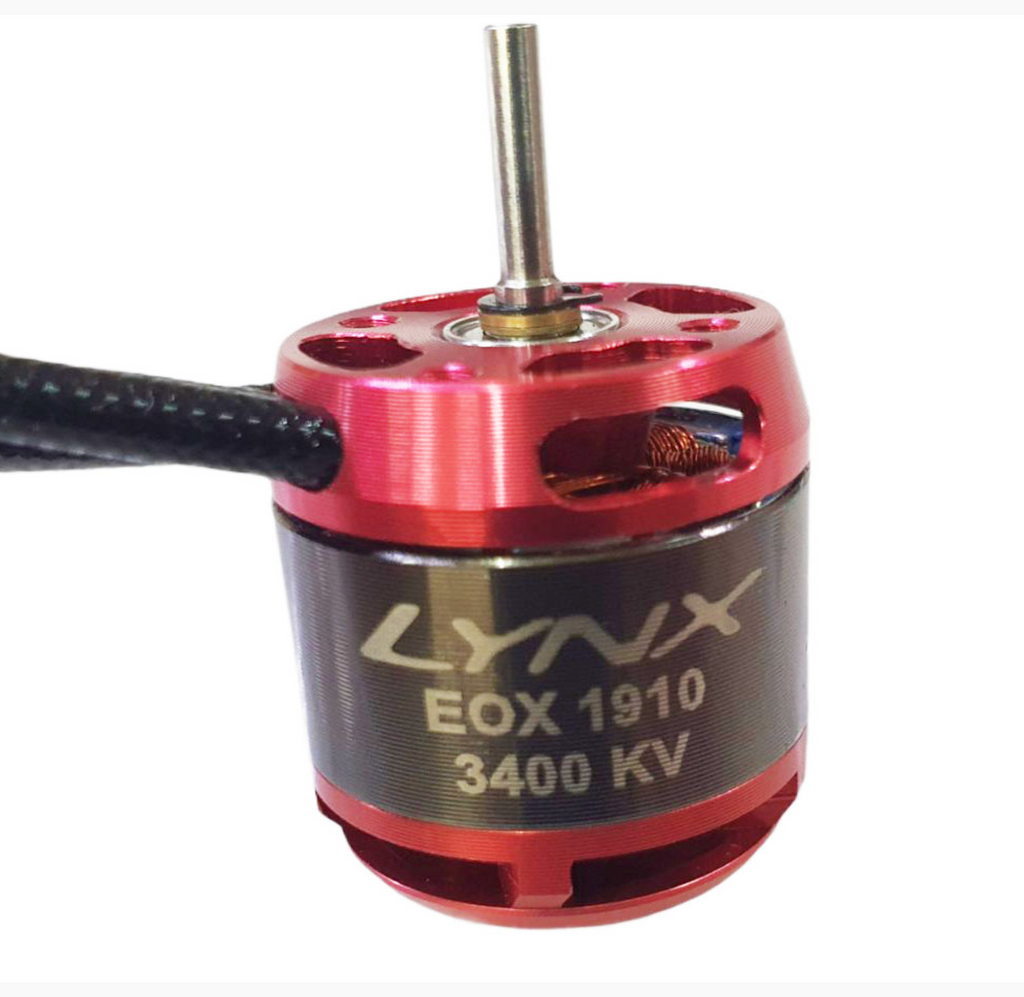

EOX 1910 developed by Lynx, this motors is the ultimate OXY 2 motor upgrade.
Featuring a parallel 0.6mm diameter wiring coil, manually assembly for the best efficiency, power and cool running.
High temperature rating Neodymium magnet and high quality material and component graduate EOX motor by Lynx a Limit Edition.
Designed in order to provide the maximum power with 4S battery pack.
EOX 1910 - 3400 KV and OXY 2SH ... be ready for the ultimate fun!
TECHNICAL SPECIFICATION:
|
Motor Kv |
3400 KV |
|
Max Lipo Cell |
4S |
|
Max Continuous Current |
30A |
|
Max Continuous Power |
400 W |
|
Stator Diameter |
19 mm |
|
Stator Length |
10mm |
|
No. of Stator Arms |
9 |
|
No. Magnet Poles |
6 |
|
Parallel Wire Diam. |
0.6 mm |
|
Weight |
39.6 g |
|
Outside Diameter |
24.8 mm |
|
Body Length |
24.8 mm |
|
Shaft Diameter and Support |
Inner 3mm / Pinion 2.5 mm |
|
Suggested ESC |
25 - 30 A |
|
Motor Timing |
5 deg |
|
Drive Frequency |
8 kHz |
PACKING LIST:
1 x EOX 1910 Motor with preinstalled 3.5 mm Connector Plug
Motor come with Extra conector for easy any ESC connections
