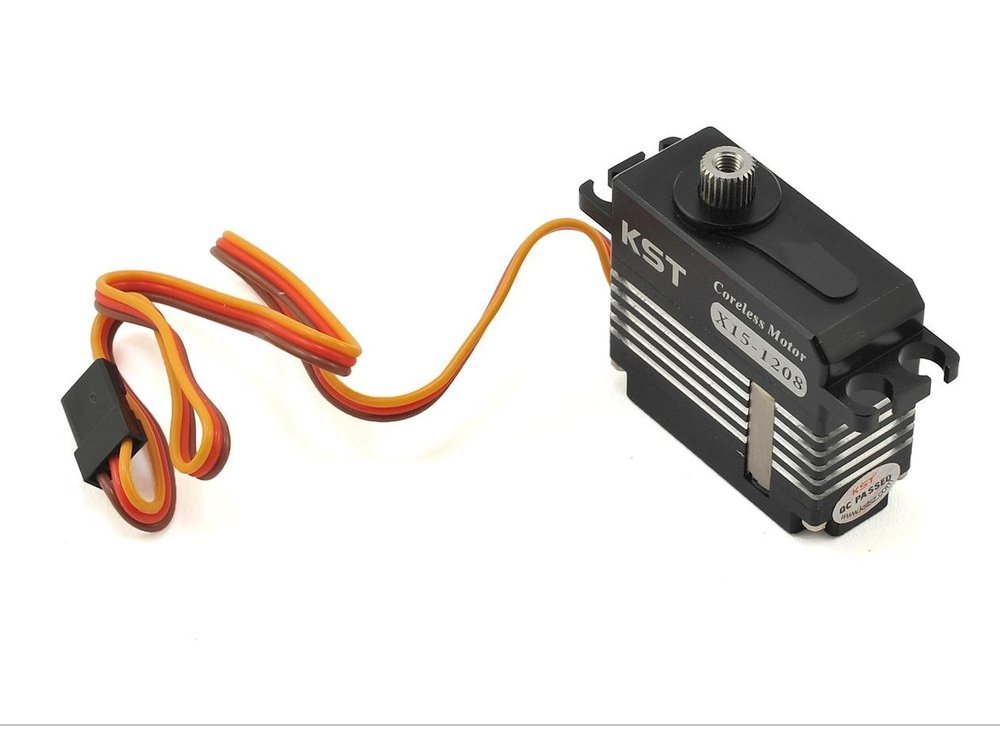

KST X15-1208 MINI CORELESS SERVO
KST X15-1208 MINI CORELESS SERVO
KST X15-1208 MINI CORELESS SERVO

KST X15-1208 MINI CORELESS SERVO

SKU: KST X15-1208
Regular price
Sold out/On Order ($105.80 CAD)
Sale price
$105.80 CAD
Unit price
per

KST X15-1208 Mini Size Digital Servo is a great choice for helicopters ranging from 430mm-570mm rotor blade size requiring mini servos such as the Align T-Rex 500, Mikado Logo 480, MSH Protos 500, and SAB Goblin 570. Additionally these servos can be used in other RC applications where the physical dimensions, and torque/speed ratings suit the need of the RC application.



Features:

  • Mini size aluminum case
  • Full metal gears
  • Dual ball bearings
  • HV compatible
  • Lightning fast
  • Coreless motor

Specifications:
Operating Voltage:
6-8.4V
Size: 35.5x15x32.5mm
Torque: 9.8kg.cm @ 6.0V; 13.5kg.cm @ 8.4V  | 136 oz/in @ 6.0V; 187.38 oz/in @ 8.4V
Speed: 0.10sec/60° @ 6.0V; 0.07sec/60° @ 8.4V
Weight: 40g
Working Frequency: 1520us/333Hz, 800us - 2200us
Motor: Coreless
Ball Bearing: 2BB
Output Gear: 25T Futaba
