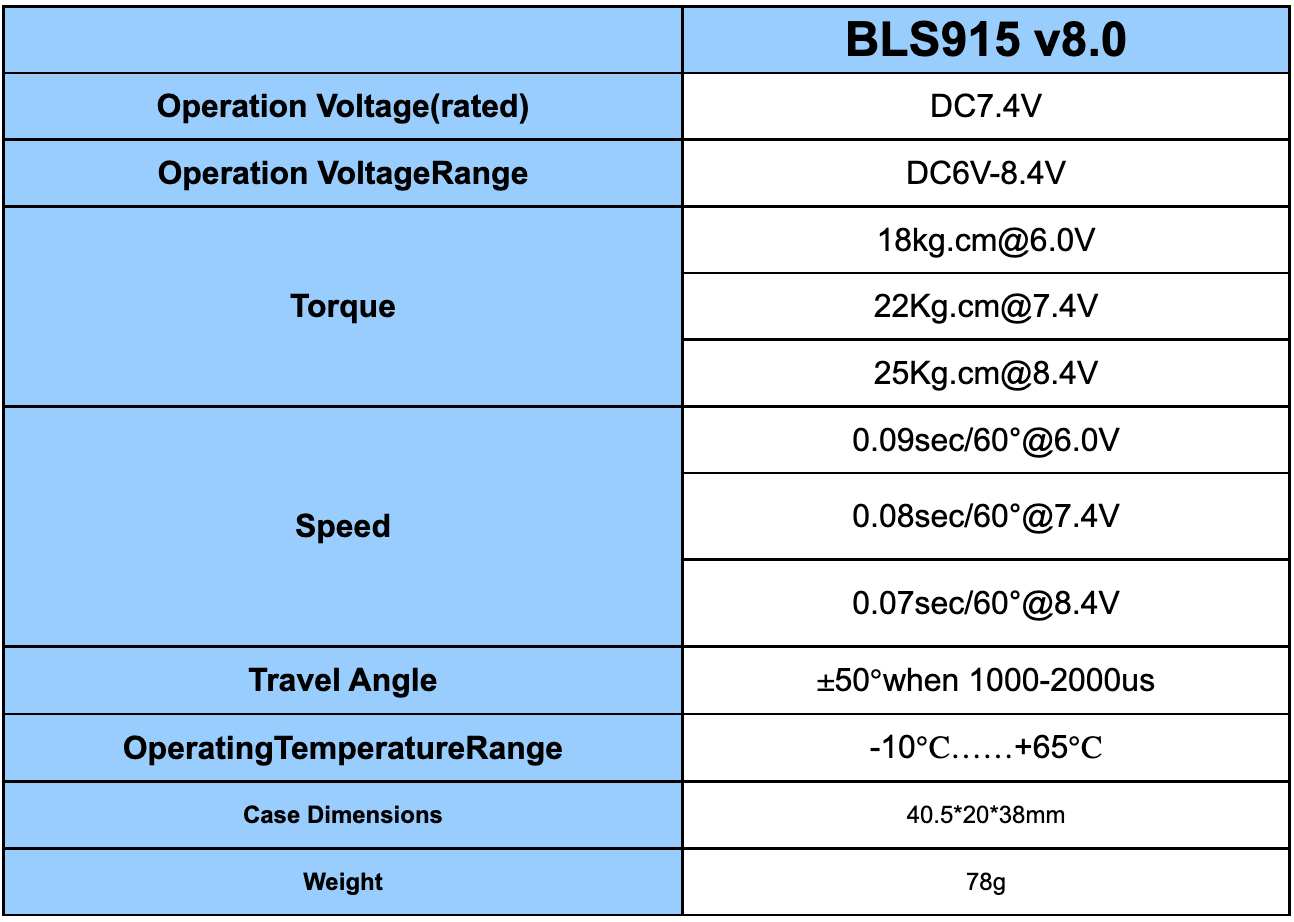

Description
Operation Voltage(rated) DC7.4V
Operation Voltage Range DC6V-8.4V
Torque 18kg.cm@6.0V 22Kg.cm@7.4V 25Kg.cm@8.4V
Speed 0.09sec/60°@6.0V 0.08sec/60°@7.4V 0.07sec/60°@8.4V
Travel Angle ±50°when 1000-2000us
Operating Temperature Range -20℃ to +65℃
can use USB programmer and program box now.
