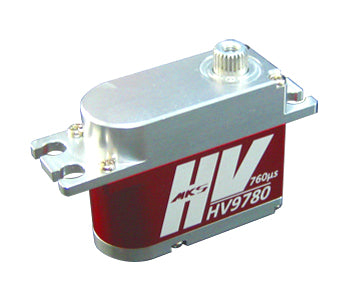

HV9780 MKS Servo
HV9780 MKS Servo

HV9780 MKS Servo

SKU: MKS-HV9780
Regular price
$132.22 CAD
Sale price
$132.22 CAD
Unit price
per

Electric current draw: 2.6A max.(8.2V) │ 2.4A max.(7.4V) │ 2.0A max (6.0V)
Details
SKU MKS-HV9780
Quantity in stock 987 item(s) available
Dead Band 0.001ms
Working Frequence 760μs / 560hz
Operating Voltage 5.5 ~ 8.4 V DC Volts (2S Lipo un-regulated)
Operating Speed (6V) 0.055s
Operating Speed (7.4V) 0.045s
Operating Speed (8.4V) 0.040
Stall Torque (6V) 3.3kg/cm
Stall Torque (7.4V) 4.0kg/cm
Stall Torque (8.4V) 4.5kg/cm
Motor Type Coreless
Gear Type Chrome-Titanium alloy gear
Weight 38.01 grams
