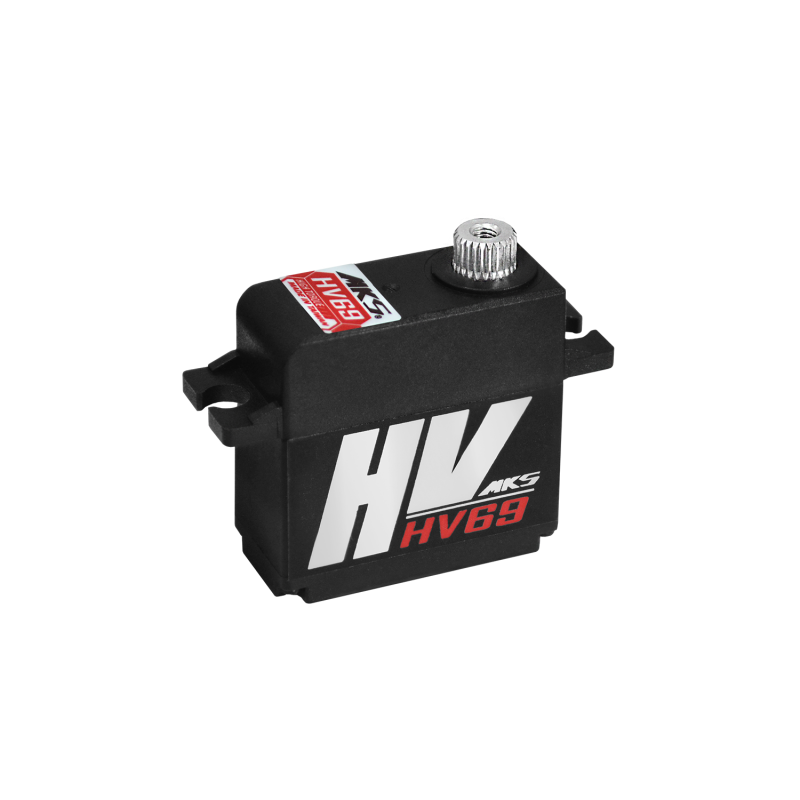

HV69 MKS High Torque Micro Servo

HV69 MKS High Torque Micro Servo

SKU: HV69
Regular price
$71.48
Sale price
$71.48
Unit price
per

HV69, the one you have been waiting for.
25 Tooth 6mm output spline


Details
SKU MKS-HV69
Spline Size 6mm 25 Tooth
Dead Band 0.001ms (Default)
Control System +Pulse Width Control
Working Frequence 1520μs / 333Hz
Operating Voltage 3.7 ~ 8.2 V DC Volts (for 2S ~ 1S LiPo)
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (4.8V) 0.17 sec/60° degrees at no load
Operating Speed (6V) 0.13 sec/60° degrees at no load
Operating Speed (7.4V) 0.11 sec/60° degrees at no load
Operating Speed (8.4V) 0.10 sec/60° degrees at no load
Stall Torque (4.8V) 6.0 kg-cm / 83.3 oz-in
Stall Torque (6V) 7.50 kg/cm (104.2 oz/in)
Stall Torque (7.4V) 9.2 Kg/cm (127.8 oz/in)
Stall Torque (8.4V) 10.2 Kg/cm (141.7 oz/in)
Motor Type Coreless Motor
Potentiometer Drive Direct Drive
Bearing Type 2x Ball bearing
Gear Type Metal Alloy Gear
Dimensions 29 x 13 x 28.7 mm
Weight 21 g
