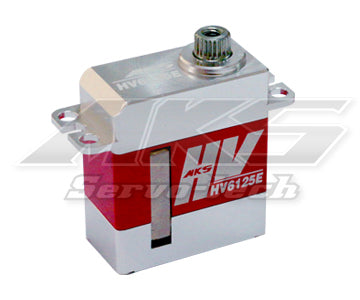

HV6125E MKS Servo
Roll over image to zoom in Click on image to zoom
HV6125E MKS Servo

HV6125E MKS Servo

MKS Servo USASKU: MKS HV6125E
Price:
$112.75CAD

Description

The MKS HV6125E is part of the latest range from MKS.
Once you have tried MKS, you will know you have tried the very best!
Never has a glider servo been so accurate and tight! This is what we all have been searching for!!
The HV6125 has a full CNC Aluminum case that has been milled to the highest of tolerances.
Details
SKU MKS-HV6125E
Quantity in stock 985 item(s) available
Dead Band 0.0008 ms
Control System +Pulse Width Control
Working Frequence 1520μs / 333hz
Operating Voltage 4.8~8.4 V DC Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (6V) 0.07 sec/60° degrees at no load
Operating Speed (7.4V) 0.06 sec/60° degrees at no load
Operating Speed (8.4V) 0.05 sec/60° degrees at no load
Stall Torque (6V) 2.3kg-cm (31.94 oz/in)
Stall Torque (7.4V) 3.0 kg-cm (41.66 oz/in)
Stall Torque (8.4V) 3.5 kg-cm (48.61 oz/in)
Motor Type Coreless Motor
Potentiometer Drive Direct Drive
Driver Type FET
Bearing Type Dual Ball Bearings
Gear Type Chrome-Titanium alloy gear
Programmable No
Connector Wire Length 15.0 cm (5.89 in)
Dimensions 23X12X27.25 mm (0.9X0.47X1.07 in)
Weight 21.21 g (0.74 oz)
