Description
|
Details
|
||
| SKU | MKS-HBL980 | |
| Dead Band | 0.0008ms (Default) | |
| Control System | +Pulse Width Control | |
| Working Frequence | 760μs / 560hz | |
| (RX) Required Pulse | 3.5 ~ 7.2 Volt Peak to Peak Square Wave | |
| Operating Voltage | 4.0 ~ 7.2 V DC Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (6V) | 0.04 sec/60° degrees at no load | |
| Operating Speed (8.4V) | 0.030 sec/60° degrees at no load | |
| Stall Torque (6V) | 62.49 oz/in (4.5 kg.cm) | |
| Stall Torque (8.4V) | 86.10 oz/in (5.6 kg.cm) | |
| Motor Type | Brushless Motor | |
| Potentiometer Drive | Indirect Drive | |
| Driver Type | FET | |
| Bearing Type | Dual Ball Bearings | |
| Gear Type | Titanium Gears | |
| Programmable | NO | |
| Connector Wire Length | 24.0 cm (9.4 in) | |

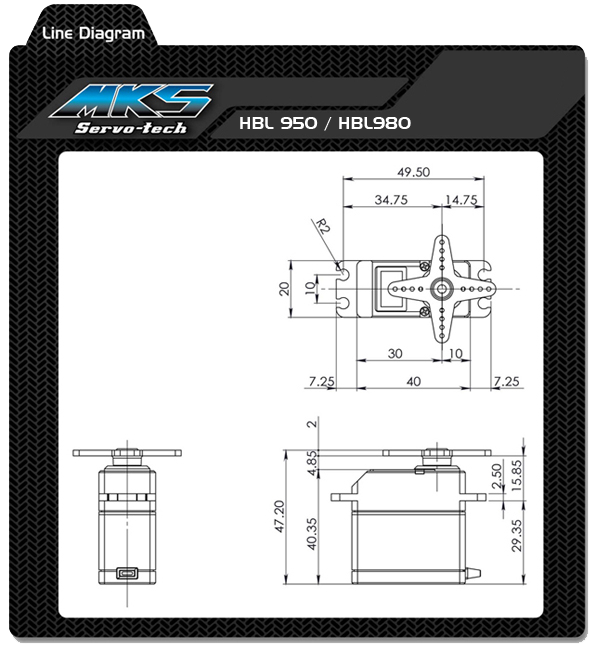

| Dimensions | 40 x 20 x 40 mm ( 1.57x0.79x1.50 in) | |
| Weight | 70.29 g (2.48 oz) | |
