Description
|
Details
|
||
| SKU | MKS-HBL669 | |
| Dead Band | 0.0005ms (Default) | |
| Control System | +Pulse Width Control | |
| Working Frequence | 760μs / 560hz | |
| Operating Voltage | 4.0 ~ 8.4 V DC Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (6V) | 0.05 sec/60° degrees at no load | |
| Operating Speed (7.4V) | 0.04 sec/60° degrees at no load | |
| Stall Torque (6V) | 58.33 oz/in (4.2 kg-cm) | |
| Stall Torque (7.4V) | 70.82 oz/in (5.1 kg-cm) | |
| Motor Type | Brushless Motor | |
| Potentiometer Drive | Indirect Drive | |
| Bearing Type | Dual Ball Bearings | |
| Gear Type | Chrome-Titanium alloy gear | |
| Connector Wire Length | 24.0 cm (9.4 in) | |

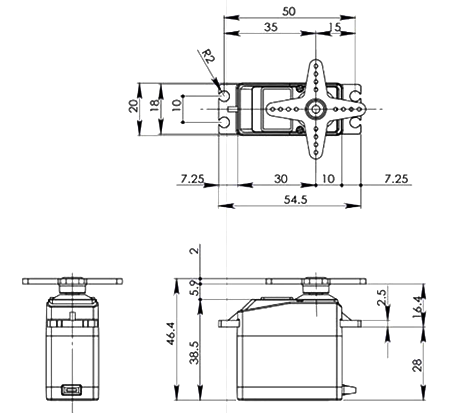

| Dimensions | 40 x 20 x 40 mm ( 1.57x0.79x1.50 in) | |
| Weight | 63 g (2.22 oz) | |
