Description
|
Details
|
||

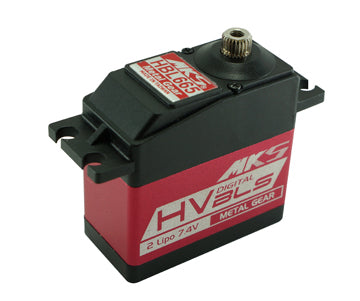

| SKU | MKS-HBL665 | |
| Dead Band | 0.0005ms (Default) | |
| Control System | +Pulse Width Control | |
| Working Frequence | 1520μs / 333hz | |
| Operating Voltage | 4.0 ~ 8.4 V DC Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (6V) | 0.13 sec/60° degrees at no load | |
| Operating Speed (7.4V) | 0.10 sec/60° degrees at no load | |
| Stall Torque (6V) | 169 oz/in (12.2 kg.cm) | |
| Stall Torque (7.4V) | 211 oz/in (15.2 kg.cm) | |
| Motor Type | Brushless Motor | |
| Potentiometer Drive | Indirect Drive | |
| Bearing Type | Dual Ball Bearings | |
| Gear Type | Chrome-Titanium alloy gear | |
| Connector Wire Length | 24.0 cm (9.4 in) | |
| Dimensions | 40 x 20 x 40 mm ( 1.57x0.79x1.50 in) | |
| Weight | 63 g (2.22 oz) | |
