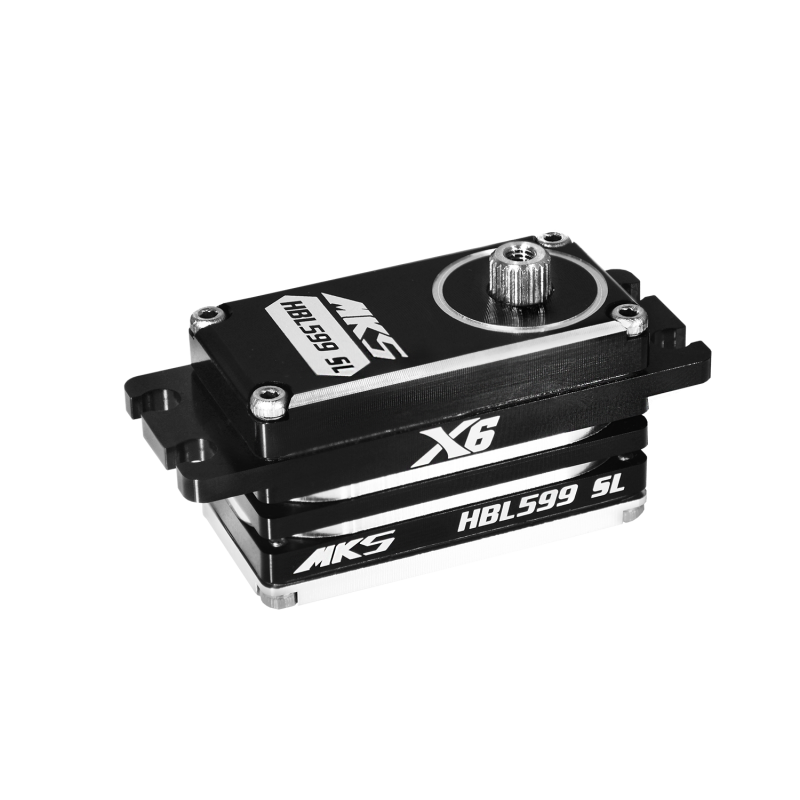

HBL599SL MKS Servo
HBL599SL MKS Servo

HBL599SL MKS Servo

SKU: MKS-HBL599SL
Regular price
$194.98
Sale price
$194.98
Unit price
per

Details
SKU MKS-HBL599SL
Dead Band 0.0008ms (Default)
Control System +Pulse Width Control
Working Frequence 1520μs / 333hz
Operating Voltage 3.5 ~ 7.4 Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (4.8V) 0.14 sec/60° degrees at no load
Operating Speed (6V) 0.11 sec/60° degrees at no load
Stall Torque (4.8V) 222.2 oz/in (16 kg/cm)
Operating Speed (7.4V) 0.09sec/60° degrees at no load
Stall Torque (6V) 249.9 oz/in (18 kg/cm)
Stall Torque (7.4V) 319.4 oz/in (23 kg/cm)
Motor Type Brushless Motor
Potentiometer Drive Indirect Drive
Bearing Type 12x8 mm Double bearings
Gear Type Metal alloy gear

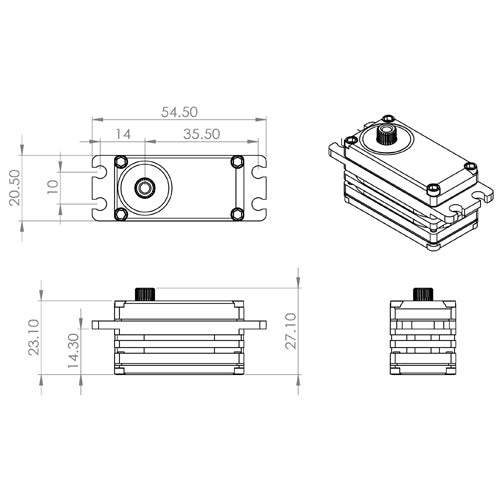

Dimensions 40 x 20.5 x 23.1 mm
Weight 53.5 g (1.89oz)
