Description
|
Details
|
||

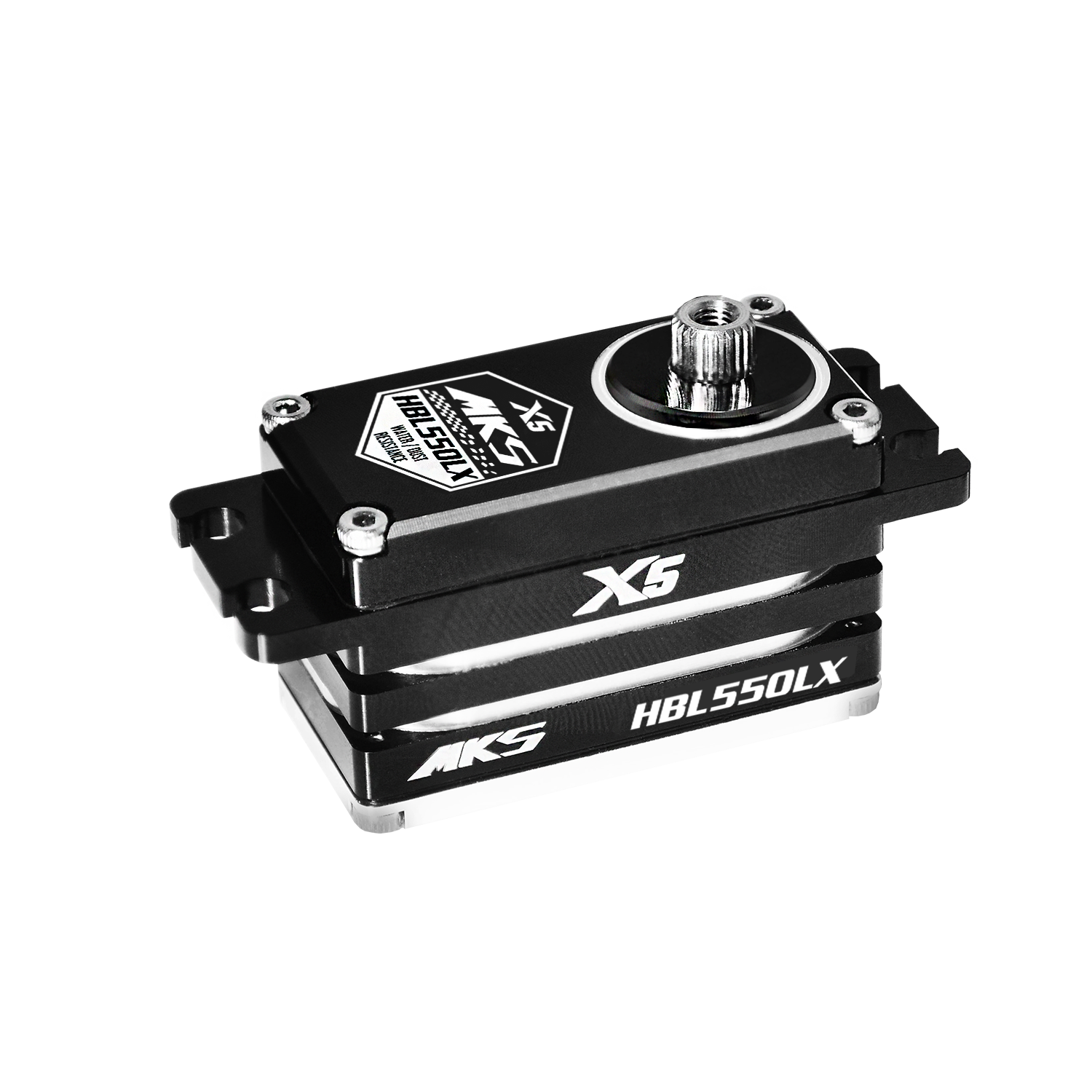

| SKU | MKS-HBL550LX | |
| Dead Band | 0.001ms (Default) | |
| Control System | +Pulse Width Control | |
| Working Frequence | 1520μs / 333hz | |
| Operating Voltage | 3.7 ~ 7.4 Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (4.8V) | 0.13 sec/60° degrees at no load | |
| Operating Speed (6V) | 0.09 sec/60° degrees at no load | |
| Stall Torque (4.8V) | 144 oz/in (10.4 kg/cm) | |
| Operating Speed (7.4V) | 0.08 sec/60° degrees at no load | |
| Stall Torque (6V) | 180 oz/in (13 kg/cm) | |
| Stall Torque (7.4V) | 222 oz/in (16 kg/cm) | |
| Motor Type | Brushless Motor | |
| Potentiometer Drive | Indirect Drive | |
| Bearing Type | 12x8 mm Double bearings | |
| Gear Type | Alloy gear | |
| Dimensions | 40 x 20.5 x 26.40 mm | |
| Weight | 57.8 g | |
