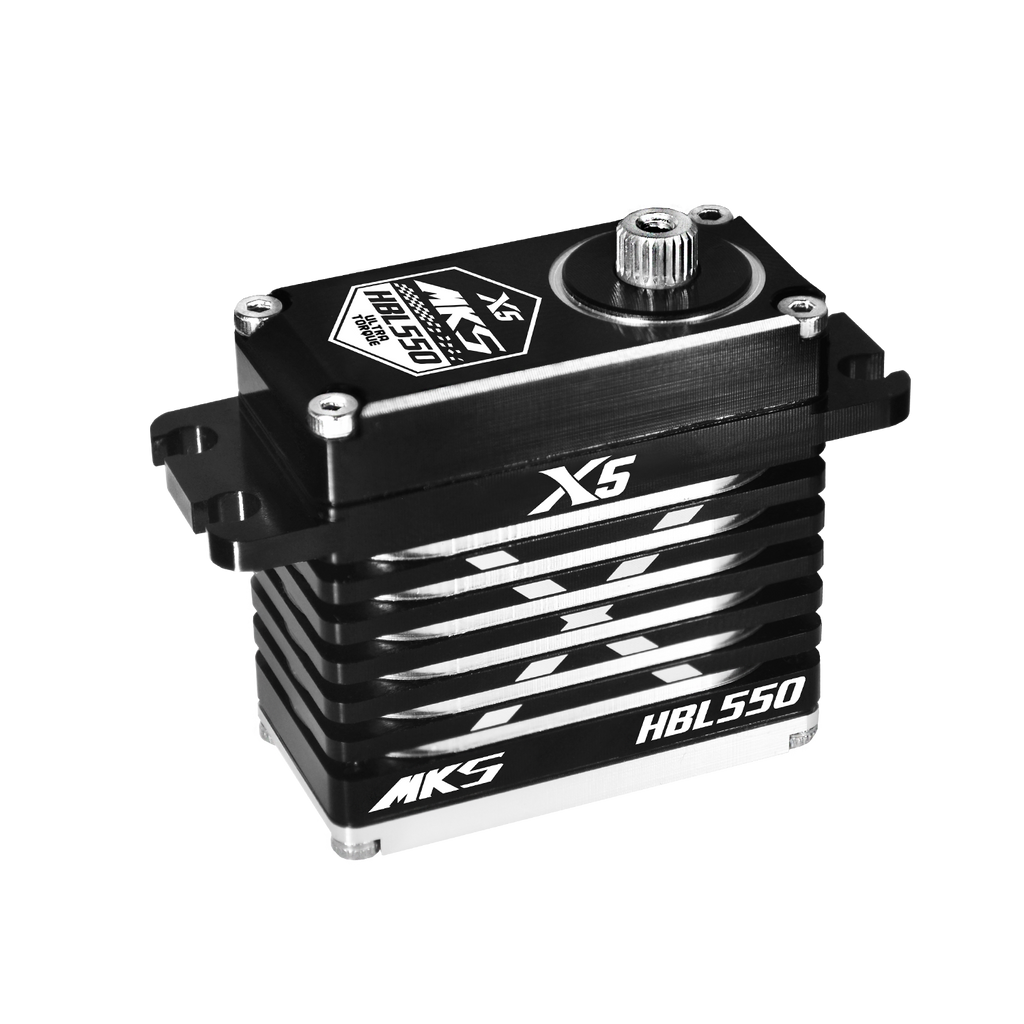

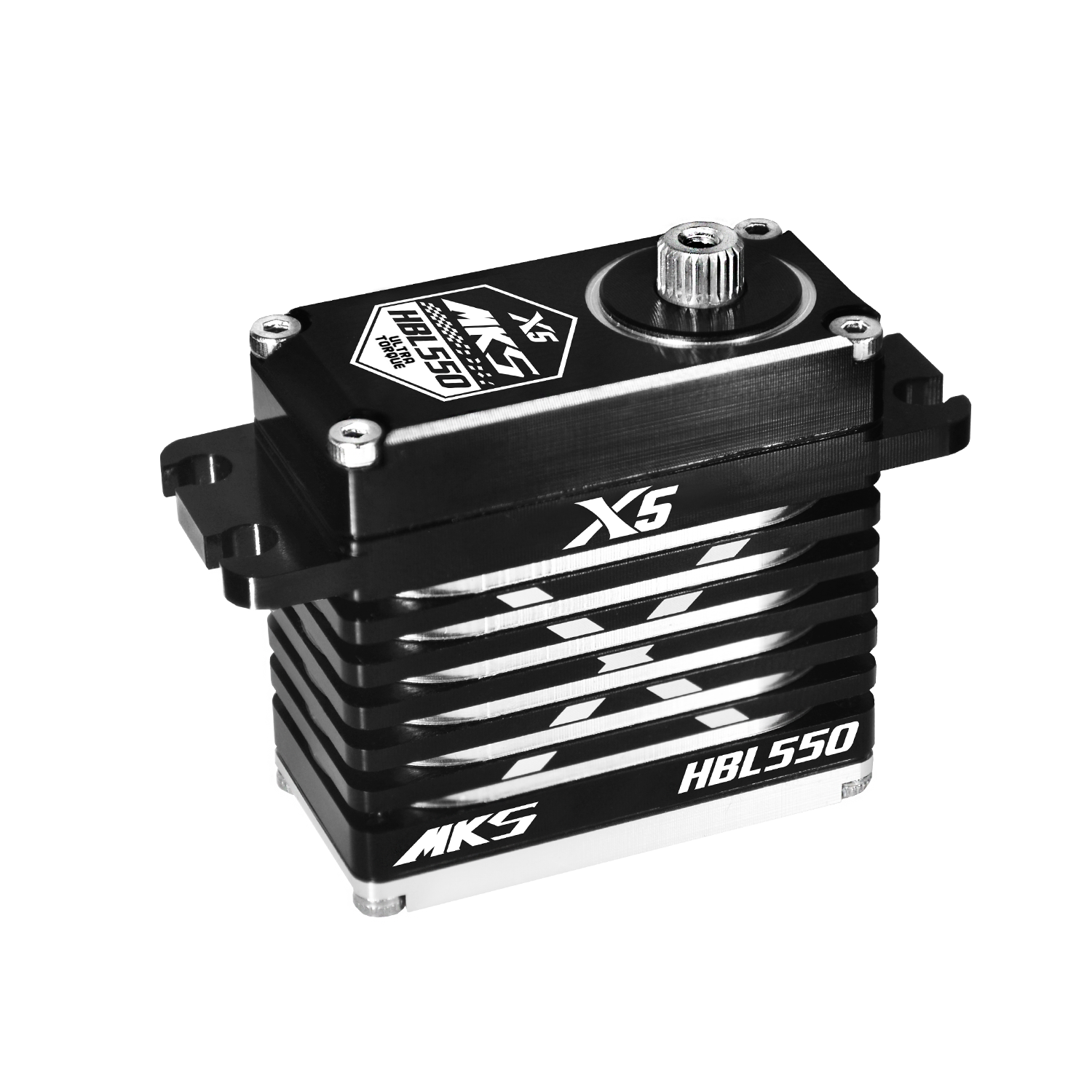

| SKU | MKS-HBL550 | |
| Dead Band | 0.001ms (Default) | |
| Control System | +Pulse Width Control | |
| Working Frequence | 1520μs / 333hz | |
| Operating Voltage | 5 ~ 8.4 Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (6V) | 0.117 sec/60° degrees at no load | |
| Operating Speed (7.4V) | 0.094 sec/60° degrees at no load | |
| Operating Speed (8.4V) | 0.085 sec/60° degrees at no load | |
| Stall Torque (6V) | 402oz/in (29 kg/cm) | |
| Stall Torque (7.4V) | 499 oz/in (36 kg/cm) | |
| Stall Torque (8.4V) | 527 oz/in (38 kg/cm) | |
| Motor Type | Brushless Motor | |
| Potentiometer Drive | Indirect Drive | |
| Bearing Type | 12x8 mm Double bearings | |
| Gear Type | Alloy gear | |

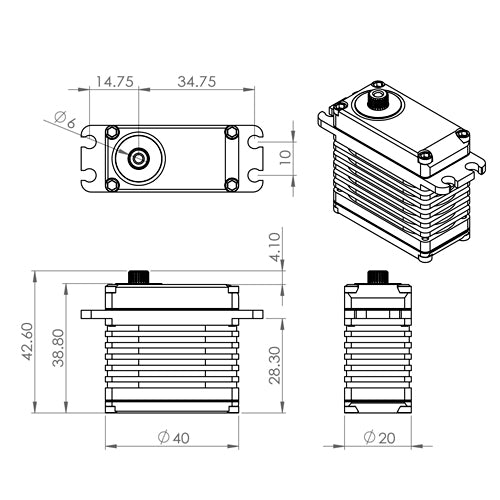

| Dimensions | 40 x 20 x 38.5 mm | |
| Weight | 79.5 g | |
