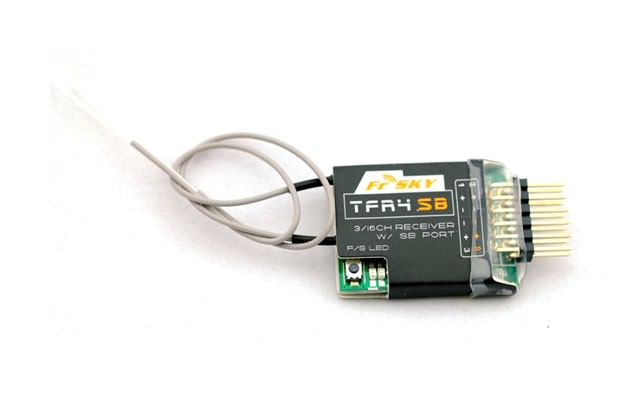

The FrSky TFR4SB Futaba Compatible receiver is capable of handling 16 channels - with three normal PWM outputs and up to sixteen channels on the dedicated SBUS output.
| Number of Channels |
16 (1-3 from conventional outputs, 1-16 from SBUS port) |
| Input Voltage |
3.5-10V DC |
| Current Draw |
100mA @ 5V |
| Operating Range |
>1.5km |
| Transmitter Compatibility |
Futaba Air Systems (7CH Mode/Multi Mode) 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14, T14MZ, etc. Futaba Surface Systems (C1 Mode) 3PK, 4PK, etc. |
| Weight |
6g |
| Dimensions |
41x24x6mm |
