Description
|
Details
|
||

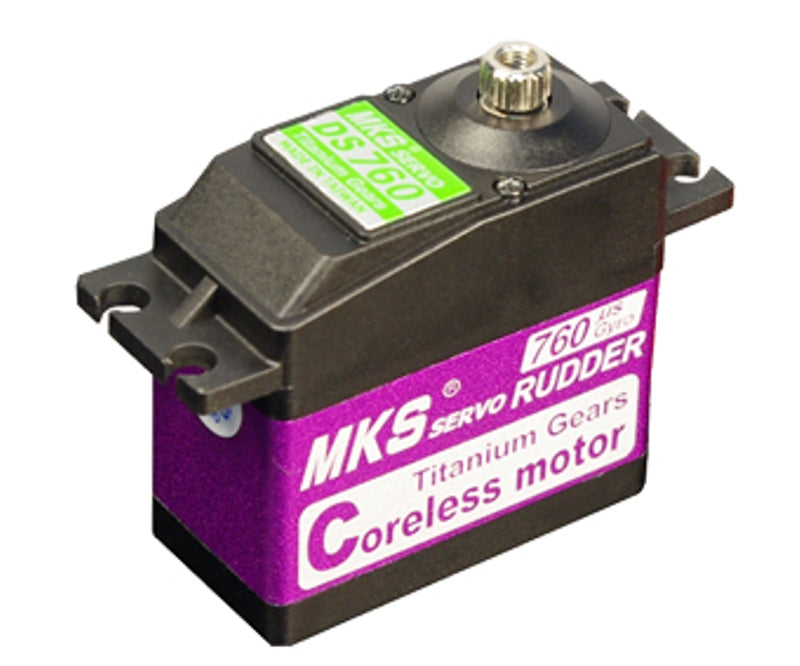

| SKU | RC-MKS-DS760p | |
| Dead Band | 0.001ms (Default) | |
| Control System | +Pulse Width Control | |
| Working Frequence | 760μs/560Hz | |
| (RX) Required Pulse | 3.0~5.0 Volt Peak to Peak Square Wave | |
| Operating Voltage | 4.8~6.0 V DC Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (4.8V) | 0.034 sec/60° degrees at no load | |
| Operating Speed (6V) | 0.027 sec/60° dagrees at no load | |
| Stall Torque (4.8V) | 3.9 kg-cm (54.17 oz/in) | |
| Stall Torque (6V) | 4.9 kg-cm (67.78 oz/in) | |
| Motor Type | Coreless Motor | |
| Potentiometer Drive | Direct Drive | |
| Driver Type | FET | |
| Bearing Type | Dual Ball Bearings | |
| Gear Type | Titanium Gears | |
| Programmable | NO | |
| Connector Wire Length | 15.0 cm (5.9 in) | |
| Dimensions | 40X20X40 mm | |
| Weight | 62.26g | |
