Description
|
Details
|
||
| SKU | MKS-DS65K | |
| Dead Band | 0.001ms (Default) | |
| Control System | +Pulse Width Control | |
| Working Frequence | 1500μs / 333hz data: 850μs~2150μs | |
| Operating Voltage | 4.8 ~ 6.0 V DC Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (4.8V) | 0.203 sec/60° degrees at no load | |
| Operating Speed (6V) | 0.154 sec/60° degrees at no load | |
| Stall Torque (4.8V) | 1.85 kg.cm (TBA oz/in) | |
| Stall Torque (6V) | 2.20 kg.cm (TBA oz/in) | |
| Motor Type | Coreless Motor | |
| Potentiometer Drive | Direct Drive | |
| Driver Type | FET | |
| Bearing Type | 2 Bearing | |
| Gear Type | 7075 Aluminium gear | |

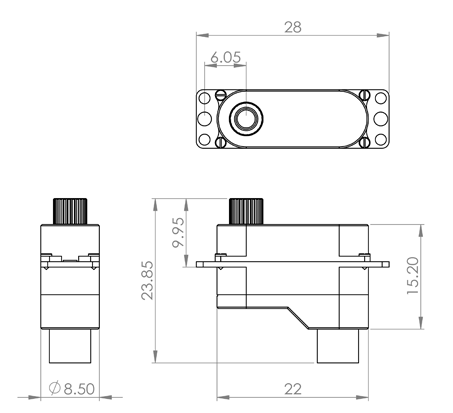

| Dimensions | 22 X 8.5 X 15 mm (0.87 X 0.33 X 0.59 in) | |
| Weight | 6.5 g (0.23 oz) | |
