Description
Improvements / changes to the STRIKE 7:

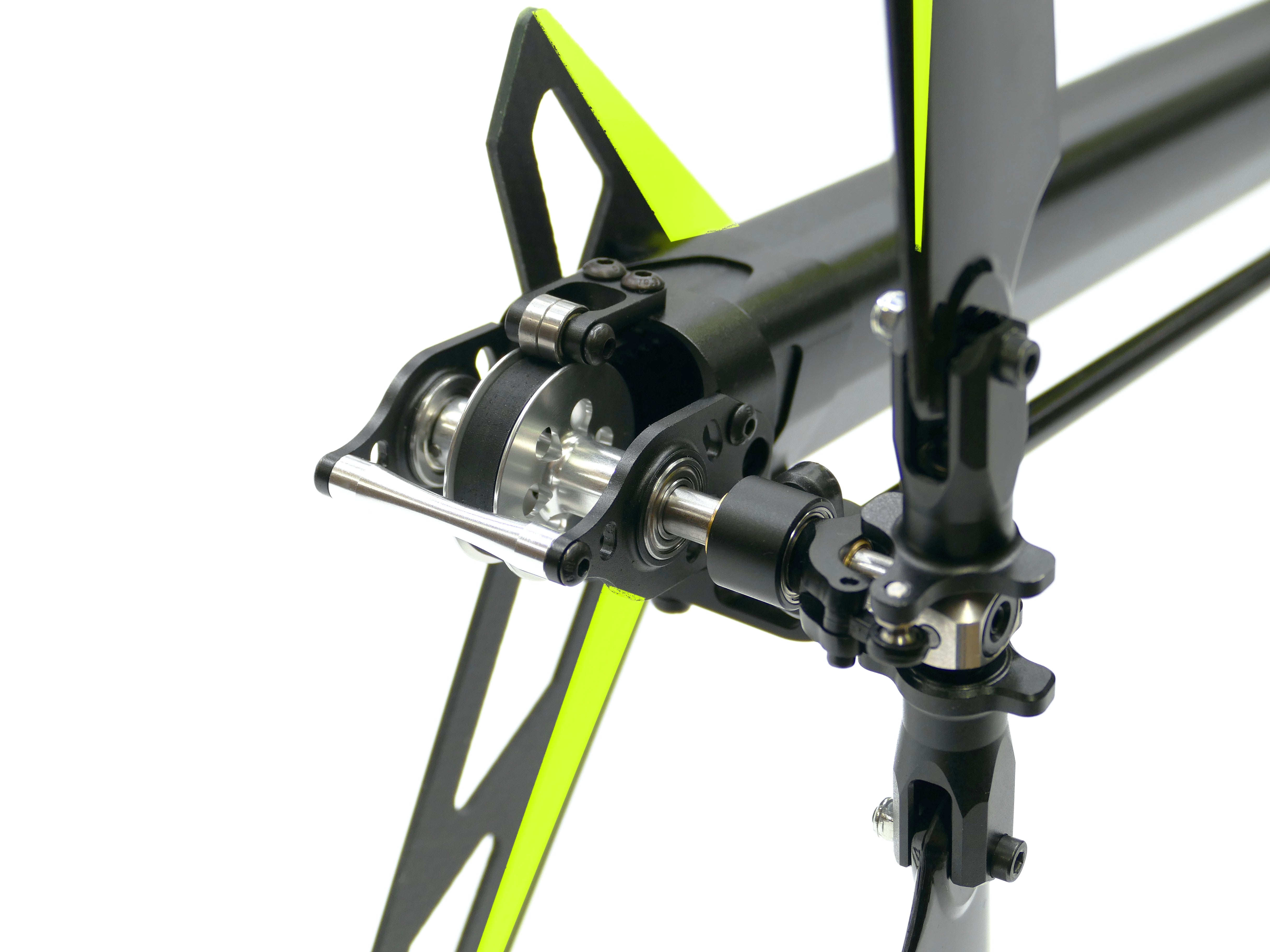

Freewheel, belt tensioner, canopy lock, redesign of the tail boom, rotor head damping,
Tail speed: 1: 5.05

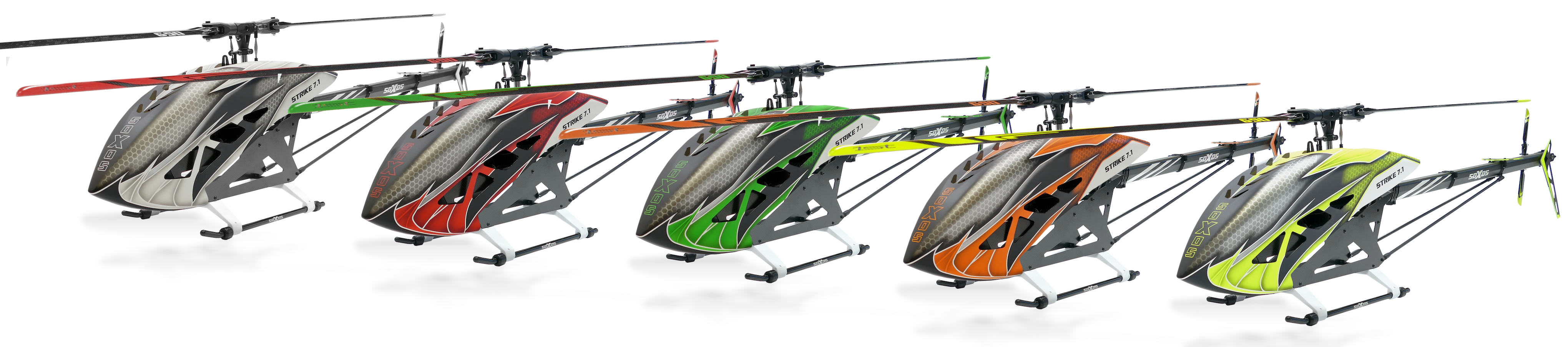

Canopy Colours:
Neon yellow, neon orange, white, green, red
Canopy surface: matt
Main and tail rotor blade colours: neon yellow, neon orange, white, green, red
Construction kit content:

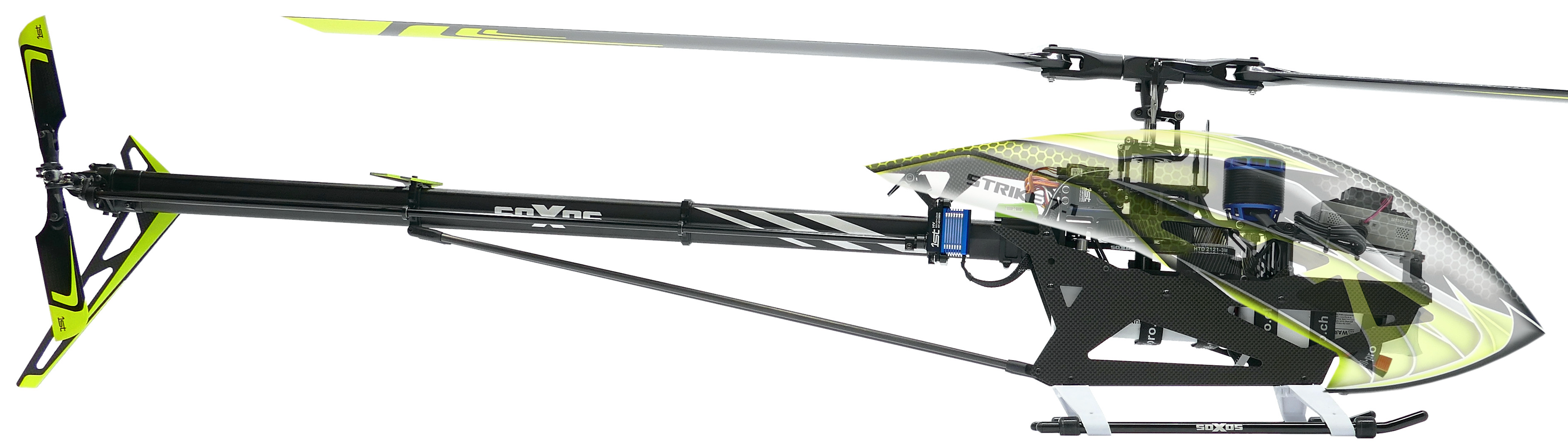

- soXos STRIKE 7.1 Kit
- Motor pinion 6 and 8mm for motors from 520-560KV / 12S
- Battery plate
- Aluminium servo arm suitable for all common servo types
- Canopy in the colour of your choice
- Main rotor blades 1st-RC 690mm, in the same colour as the canopy
- Tail rotor blades 1st-RC 105mm, in the same colour as the canopy
- Instructions
Kit includes:
- soXos Strike7 Kit
- Pinion 16t/6mm for Motors from 520-560KV/12S
- Battery tray
- Canopy red/yellow
- Manual
Recommended components - not included in the KIT:
Flybarless system
Regulator: 12S from 130A
Motor: 700 - 850 class with 450 - 560KV / 6mm or 8mm shaft,
Motor shaft length from 20 - 56mm
(Maximum size motor: Ø 63mm, height 64mm)
Swashplate servos 3pcs.: min.14kg / cm
Tail servo: min. 6kg / cm
12S battery 4'000 - 6'500mAh (maximum size drive battery: width 62mm, height 68mm,
length 350mm)
Transmitter-receiver
Gear Ratios (Pinion are available for 6mm and 8mm Motor-shaft)
15 Teeth: 10.06
16 Teeth: 9.43 (included in kit for 6mm and 8mm shaft)
17 Teeth: 8.87
18 Teeth: 8.38
19 Teeth: 7.94
Technical description
- Weight without components and blades: approx. 2180g
- Rotor blade length: 685 - 710mm
- Tail rotor blade length: 105mm
- Tail ratio: 1: 5.05
- Main gear ratios: 7.94 - 10.06 (9.43 included in the kit)
- Maximum size of the motor: Ø 63mm, height 64mm, motor shaft length from 20 - 56mm
- Maximum dimensions of the Lipo battery: width 62mm, height 68mm, length 350mm
- Main Rotor diameter: ca. 1,570 mm with 690mm Blades
- Weight of the mechanics without Battery: ca. 3,690g
- Lenght: 1,340mm
- Height: 340mm
