Description

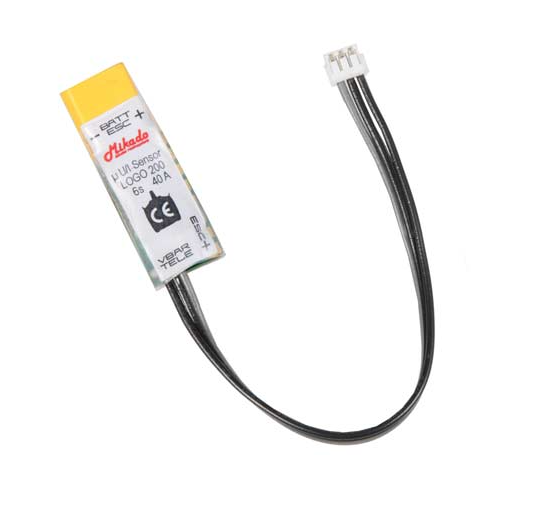

Current/Voltage/Capacitysensor for VBar Control
Hardware Features of the Current/Voltage/Capacity Sensor for flight packs

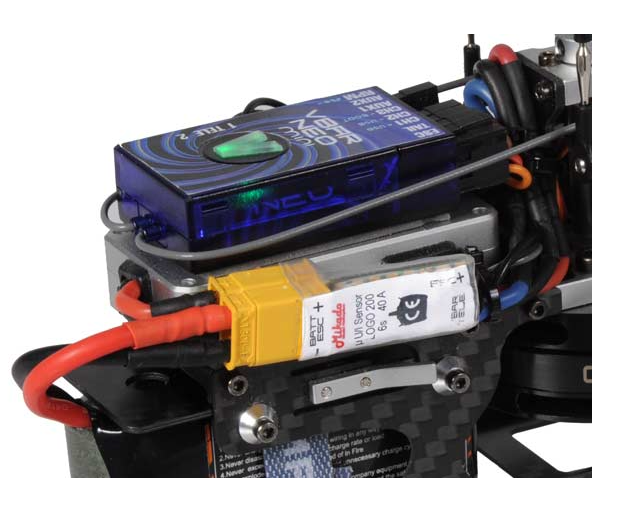

- Plug & play version with XT30 connectors and sensor wire, perfect fit for LOGO 200
- No influence from motor or current carrying wires
- Sensor wire attached
Software Features
- Direct displaying from voltage and capacity
- Max. current and min. voltage storage
- Logfile data from the flight
- Battery Logbook with names
- Adjustable capacity, residual capacity and voltage for each battery
- Residual capacity is shown as bar in the radio display
- Overdischarge Warning
- Warning at use of not fully charged batteries
- Loud speaker announcement for reducing battery capacity
Notes
- Requires a VBar with Spektrum Satellite connectors (telemetry bus for VBar Control)
- extracted capacities are not added up, measurement only on a per-flight basis
