Description

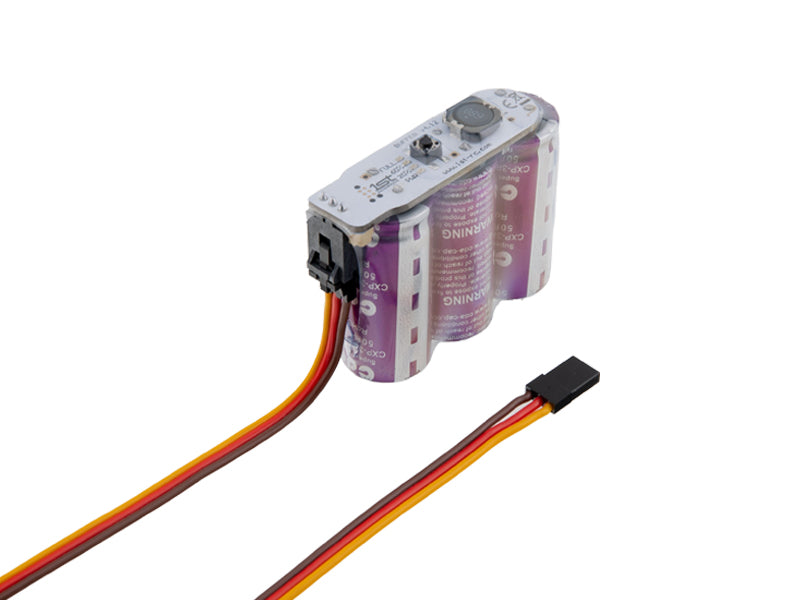

1st-RC Buffer V4.12, 3x50F for RC Helicopter 450-700
Overview:
- 32 bit, 48MHz MCU controlled operation
- Adaptive charging
- Current sensing
- Output for Telemetrie (3.0 Volt / 0.0 Volt)
- Controlled with an RC channel – can be mounted in a hidden position
Application:
- Backup capacitor for RC models giving safe emergency landing when RC battery or BEC fails
- Buffer surge current on high power model airplanes and helicopters
- Effective buffering of servo reverse current
Maximum ratings:
- Maximum input voltage: 13 V
- Maximum buffer voltage (output): 8.5 V
- Peak current: 25 A
Technical specifications:
- Width: 19 mm
- Length: 61 mm
- Height: 48 mm
- Weight: approx. 42 g
- CAPs: 3 x 50F
- Cable length: 25 cm
- Plug: Graupner / JR UNI
- Input voltage: 5.6 V to 13 V
