Description

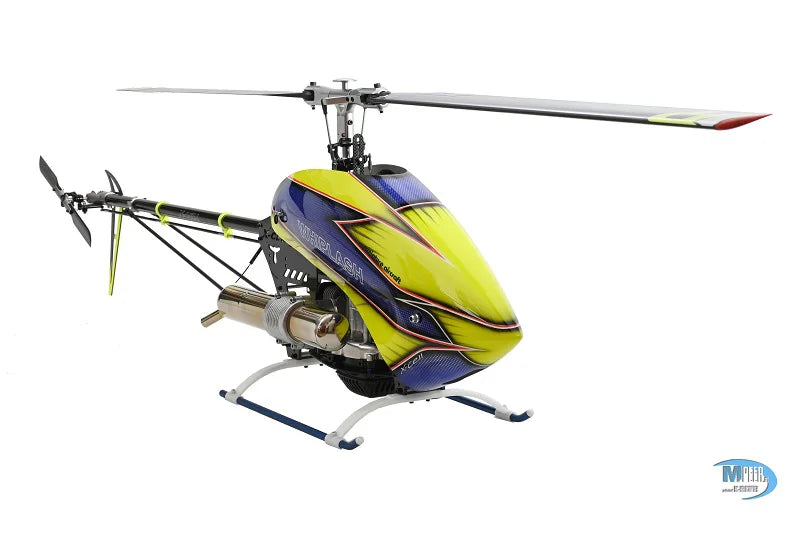

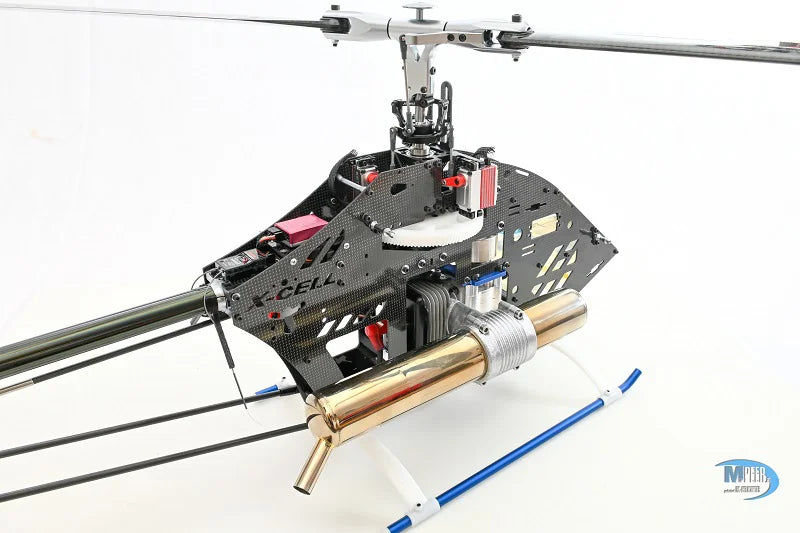

Whiplash Gasser 2nd generation
We use 100% carbon and high-quality aviation aluminum as production materials. All shafts in the model are hardened and tempered.
The oneway bearing is designed for extreme loads. The tail wheel is made of a material similar to PEEK. Here we rely on a special material made in Germany. This guarantees low wear, even at the highest speeds.
The Whiplash Gasser is a high-performance model for main rotor blades up to 720mm and for engines between 27ccm and 31ccm.
We offer special petrol / turbine main rotor blades that are slightly heavier and optimized for speeds from 1800 to 2000 rpm (MA3700-711).
The noise level of the model is in the range of 69 to 71 dB (depending on the orientation of the model) measured at a distance of 25 meters at 1950 rpm in hovering flight at a height of 1 meter above the ground.

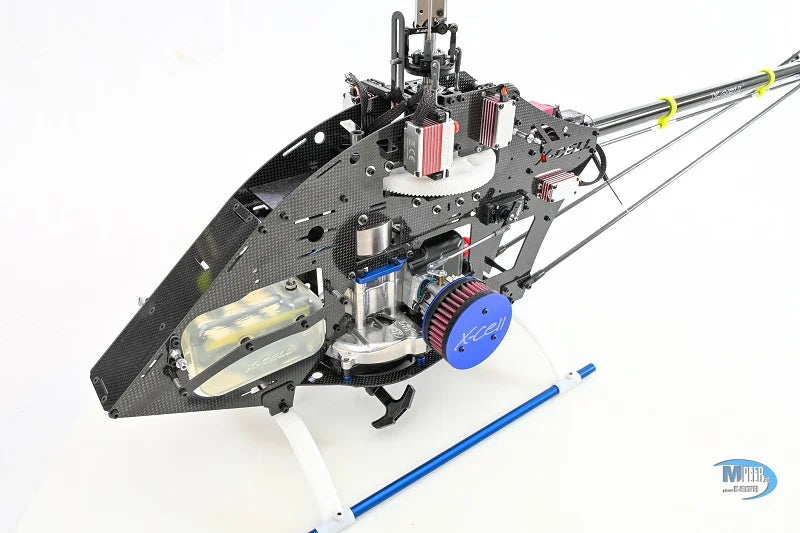

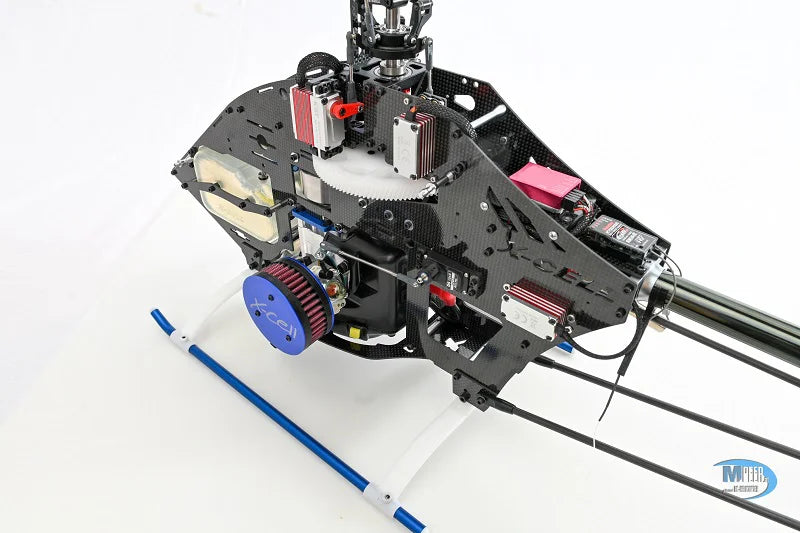

- Sturdy graphite main frame unit.
- All C/F parts are made from 100% carbon.

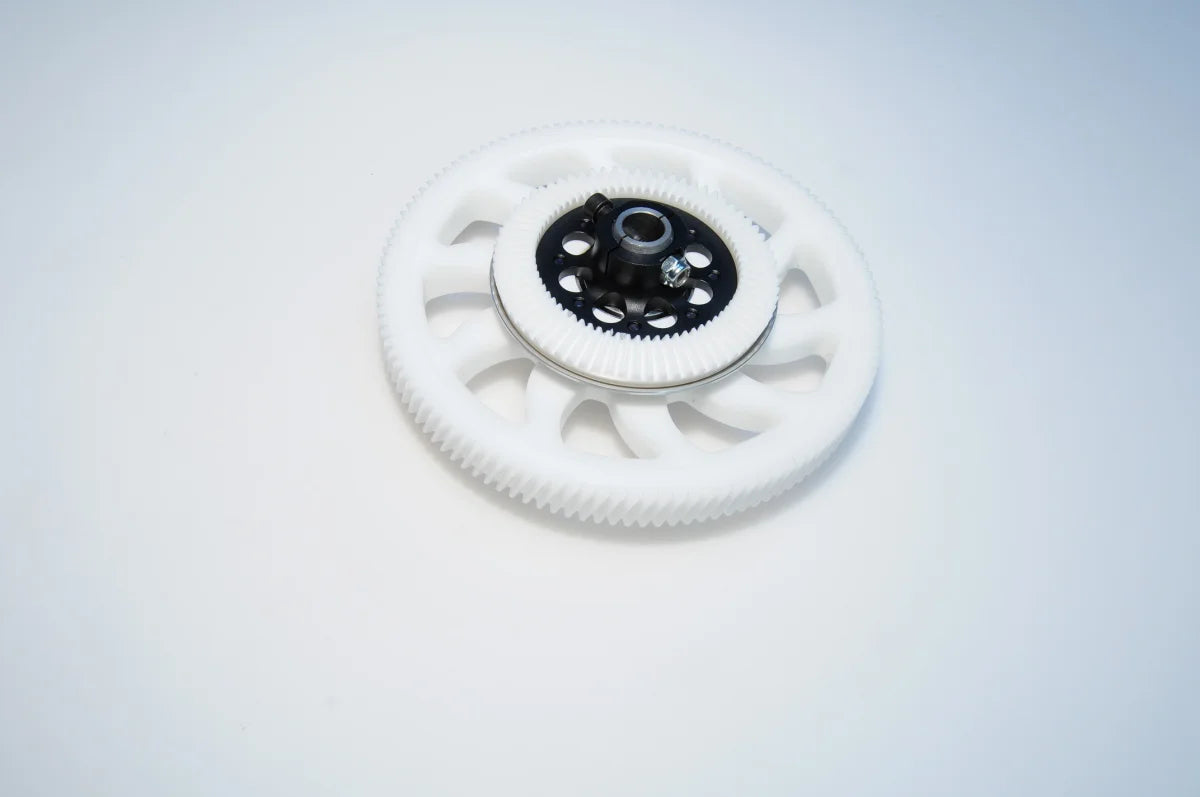

- CNC machined Delrin 117 tooth helical main gear
- High quality one way bearing Made in Germany
- High quality one way bearing hub, full ball bearings
- Heavy duty, high quality front tail drive gears Made in Germany
- High precise two-piece clutch bell with double ball bearing support
- Optional gear ratios
- True T6-6061 CNC machined aluminum components
- CNC machined aluminum triple main shaft bearing blocks
- Direct controlled 120 (degree) CCPM
- CNC machined aluminum boom clamps
- CNC machined aluminum engine mount
- Full ball bearings throughout
- High quality landing gear struts
- Full ball bearings
- Heavy duty linkages
- 9mm head axle made from special high quality steel
- CNC machined aluminum swashplate

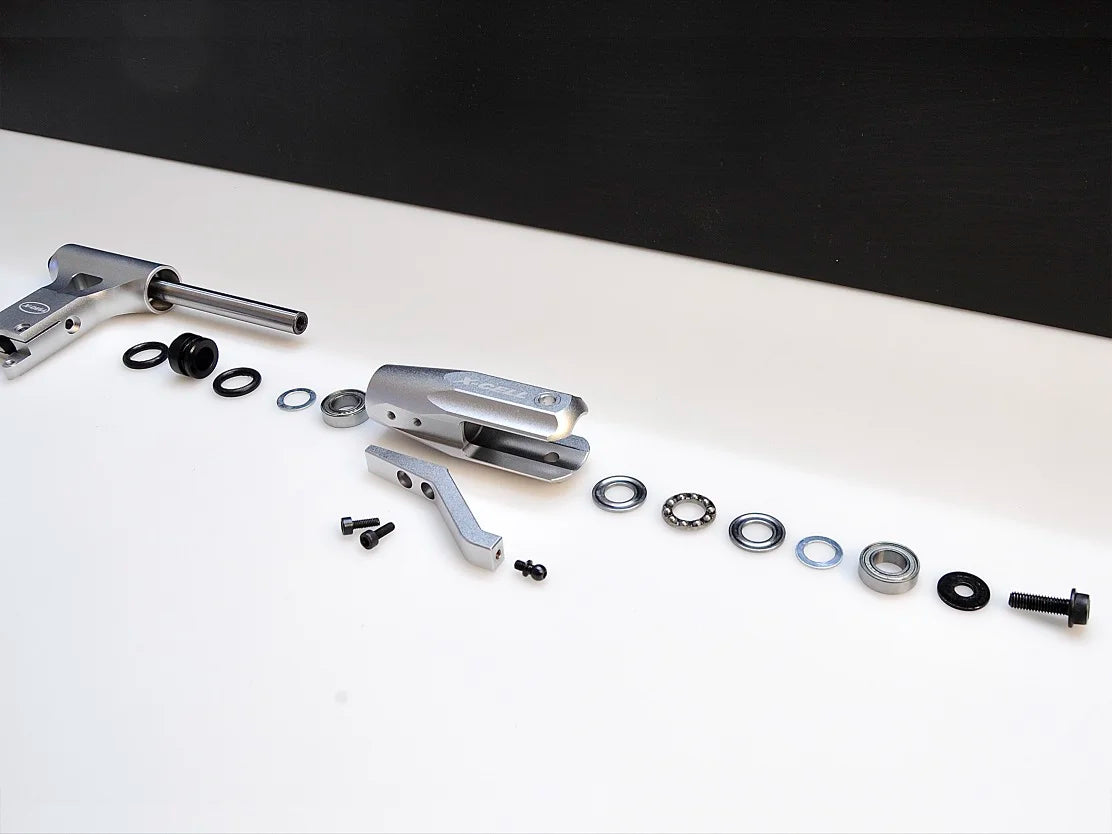

- CNC machined main rotor grips

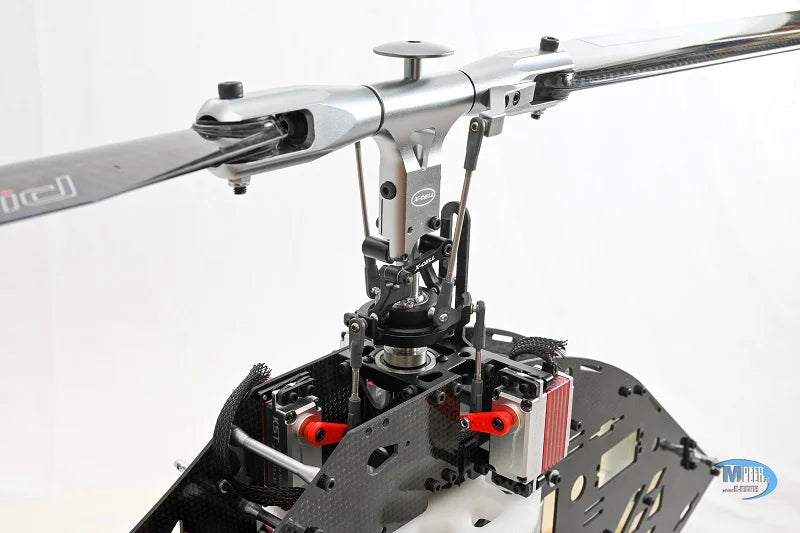

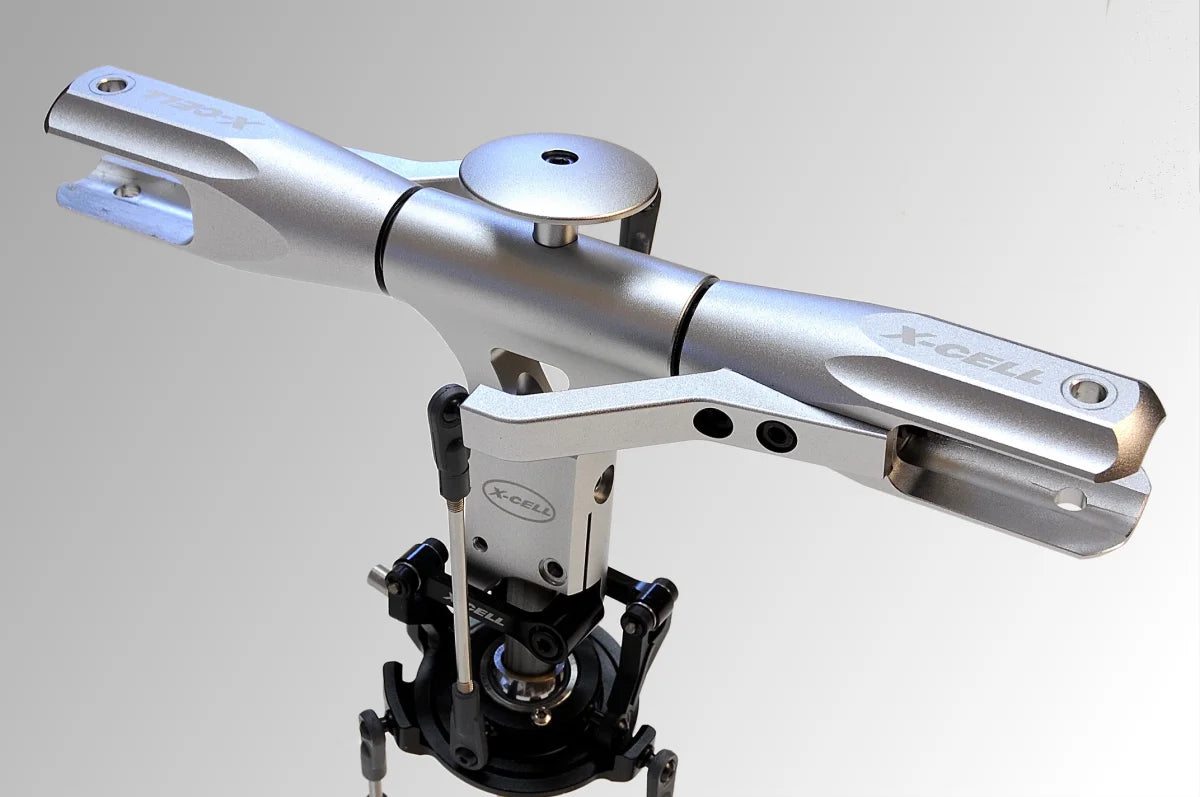

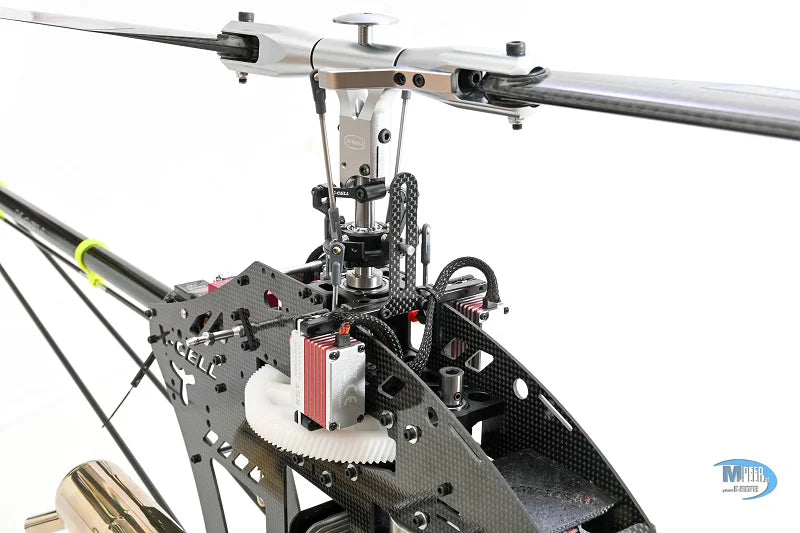

- CNC machined main rotor head
- High quality swashplate
- High precise swash plate follower arms with 4 ball bearings each
- Full ball/thrust bearings
- Tail Rotor hub made from special high quality steel
- Graphite tail fin

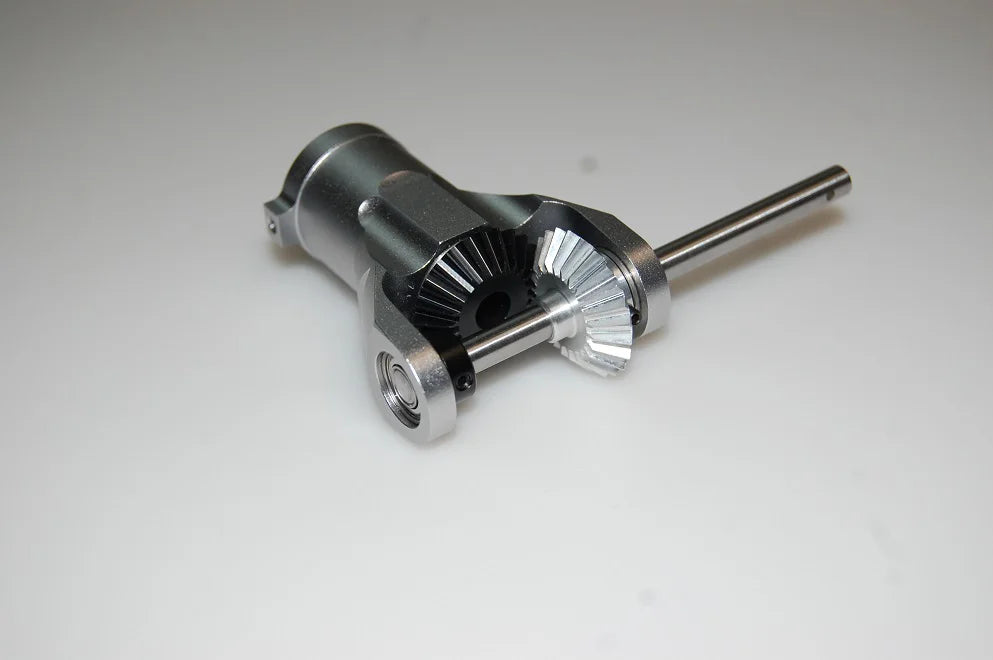

- CNC aluminum open gearbox
- CNC machined tail gears made from aluminum and POM
- Carbon 22mm tail boom
- Precise running carbon torque tube w. 3 ball bearings
- Hardened tail rotor output shaft
- High precise tail slider
- Carbon/Aluminum boom supports
- Carbon Tail Control Rod
- High Flow Air Cleaner X-Cell
- High Visibility Painted Epoxy-Glass Canopy
Engine: we recommend a 270 to 310 size (26 to 30.5ccm) engine balanced and optimized for use in R/C helicopters. We recommend NOT to use an engine based on the Zenoah RC320.
Muffler: you can use the Zimmermann Whiplash edition muffler or the M-Studio pipe. The Zimmermann is made from stainless steel. The M-Studio is about 100g less in weight.
Blades: we recommend 710 to 720mm main blades. We have good experience with 716 Rail, 713 Switch, 720 MS-Composite and we have a special 710 MS-Composite which is optimized for the Whiplash gasser and turbine. 105mm tail blades work best.
Servos: you will need servos which can handle the vibrations of a gas helicopter. Most experience we have with Futaba
Governor: it is highly recommended to use a governor at a gas helicopter. The Futaba and Bavarian Demon Axon FBLs do include very good governors. So you will not need any separate one. If you use a FBL without a governor or with a governor which cannot handle gas engines you can use the Futaba GY701 or GV-1 governor for example.
Receiver battery: any 2S LiPo / LiFe or 5S NiMh battery with at least 3500mAh
Switch: we recommend a high quality electronical switch like the Futaba P-FESW-1D. It is important to use high quality connectors which can handle the vibrations. The Futaba switch comes with deans connectors also for the battery.
