SCORPION HKIV-4025-1100KV

Mikado USASKU: MTR-0063

Price:
Sale price$263.01CAD

Description

Product Description

From 2010 when Scorpion HKIII-40 series is released, a lot of feedback by World Champions and pilots in all facets of the hobby are received that they have well established themselves as the Gold Standard of R/C model power!

The HKIII-4025 series motors have proven themselves to be extremely successful in heli community and has become the most popular motor used in 500~600 class helicopters world-wide.

And now we are pleased to announce the release of the fourth generation HKIV-4025 series motors. With the same motor design and materials of HKII-45 series, and single strand winding technique on this size of motor, it has the better efficiency and power conversion than HKIII-40 series, with an entirely new EM field design, while improving the compatibility with various speed controllers available on the market. This new design motor will deliver even more power to your helicopter, with increased efficiency!

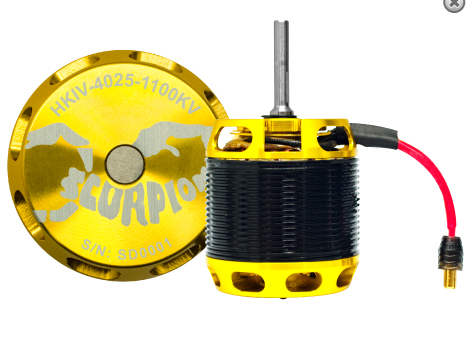

Scorpion HKIV-4025-1100KV

Specifications

Stator Diameter 40 mm(1.57 in)
Stator Thickness 25 mm(0.98 in)
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 3+3 Turn Delta
Motor Wire 1-Strand 1.7 mm
Motor Kv 1100KV RPM/Volt
No-Load Current (IO/10v) 5.29 Amps
Motor Resistance (RM) 0.006 Ohms
Max Continuous Current 100 Amp
Max Continuous Power 2220 Watt
Weight 347 Grams (10.58 oz)
Outside Diameter 49.50 mm (1.95 in)
Shaft Diameter 5.98 mm (0.24 in)
Body Length 54 mm (2.13 in)
Overall Shaft Length 89.9 mm (3.54 in)
Max Lipo Cell 6s
Peak Continuous Current 130 Amps (5 seconds)
Peak Continuous Power 2886 Watts (5 seconds)
Motor Timing 5deg
Drive Frequency 8kHz

Included in the Box

1 x Scorpion HKIV-4025-1100KV Motor
3 x Female Connectors
3 x Connector Cover
4 x M3 Screws
4 x M4 Screws

Weight including packaging

744g

Full Dimension
