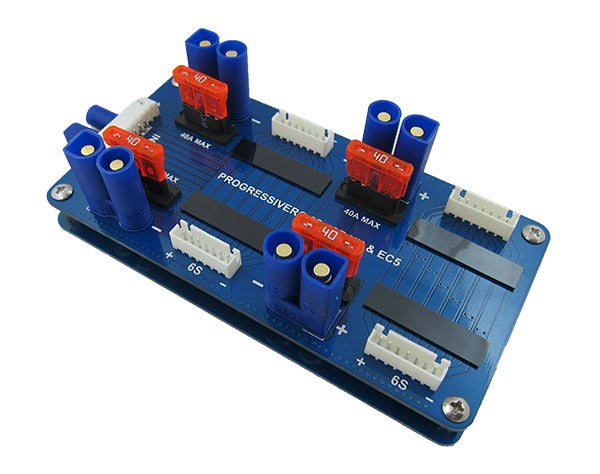

Safe Parallel Board for 6S JST-XH & EC5



Working with big 6S packs? Cut the clutter and get the one board that's designed specifically for your application.

Designed from the ground-up with one purpose, this board is as straightforward as we could make it, with EC5 and 6S JST-XH connectors for up to four packs in parallel. With fuse protection on both the main and balance connections, you can rest easy knowing that all your gear is protected from any short circuits. 40A blade fuses on the main circuits are easily replaceable if needed, while the balance circuits have self-resetting poly-fuses built into the board.

With both main and balance cables included to connect to whatever charger you're using, this is a true plug-and-play solution.



Specifications

  • Max Charge Rate: 40A per battery
  • Charge Input Connectors: Female EC5 (female housing with male bullets inside)
  • Balance Input Connectors: Female JST-XH (6S)
  • Charge Output Connector: Male EC5
  • Balance Output Connector: Female JST-XH (6S)
  • Wire Type: 12 AWG Silicone
  • Wire Length: 8"
  • Board Dimensions: 140 x 68 x 17mm
