11756 TENGU 4035HS / 560KV (12S) (6x38)

Sale price$325.65CAD

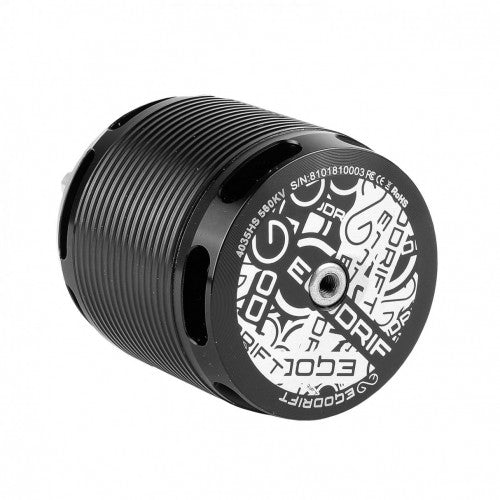

 Hand-wound EGODRIFT Tengu 4035HS motor for 600mm class rc helicopter models with a kV rating of 560kV for 12S lipos.

EGODRIFT Tengu high-performance brushless motors for RC heli are the result of one year of testing and development. The 4035HS comes with a kV rating of 560kV for 12 S lipo batteries and is the perfect choice for your 600mm sized helicopter model.

Like all models within the Tengu series, the top of the can features the iconic and heat-resistant EGODRIFT Stickerbomb design, to add the finishing touch to your 600 class heli build.

Each motor comes with mounting screws and an (optional) screw for additional securing of the bell.

EGODRIFT Tengu 4035 Series Product Dimensions
  • Manufacturer: EGODRIFT
  • Stator size: 4035
  • Motor configuration: 12N10P
  • Motor weight: 420g (14.82oz)
  • Base Colour: Black
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor wire: 1.2mm
  • Motor shaft: Hardened Steel
  • LiPo cells: 10S, 11S, 12S
  • Motor kV: 560 kV
  • Stator diameter: 40 mm
  • Stator height: 35 mm
  • Stator lamination: 0.15 mm (+)
  • Body Length: 60mm (2.36 inch)
  • Diameter: 49.6mm (1.95 inch)
  • Screw hole diameter: 3,0 mm
  • Motor hole pattern: 25mm, 30mm
  • Idle current: 4.7A
  • Maximum Current: 105A (Peak: 120A / 2 seconds)
  • Maximum Power: 4560W (Peak: 5450W / 2 seconds)
  • Internal resistance: 14.8 mOhm
  • Connection: Wire / Gold plated plugs
  • Designer: Yutao Zou
