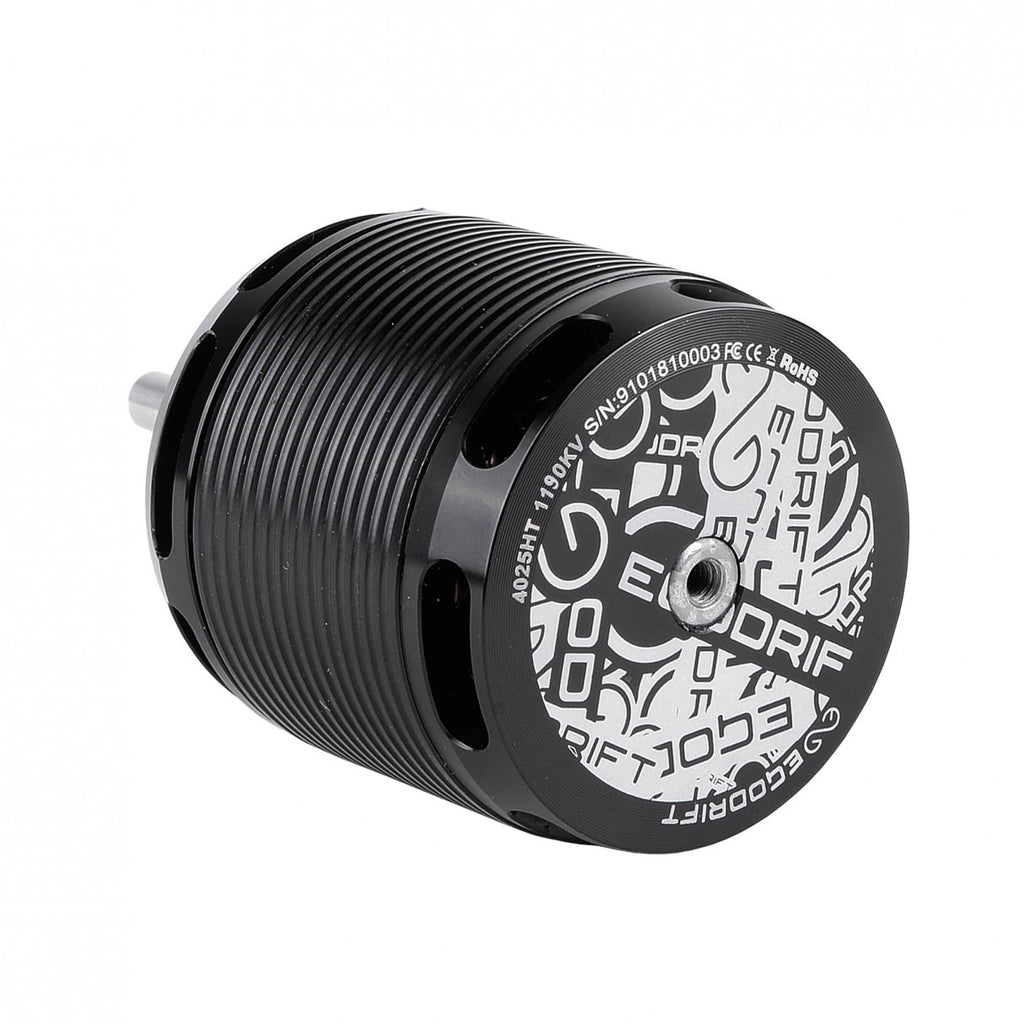

TENGU 4025HT / 1190KV (6S) 32mm

TENGU 4025HT / 1190KV (6S) 32mm

SKU: 11865
Regular price
Sold out/On Order ($358.13 CAD)
Sale price
$358.13 CAD
Unit price
per



EGODRIFT Tengu high-performance brushless motors for RC heli are the result of years of testing and development. The 4025HT comes with a kV rating of 1190kV for 6S LiPo batteries and is the perfect choice for your SAB Goblin Kraken 580 and other high-kv-550mm sized helicopter model.

Like all models within the Tengu series, the top of the can features the iconic and heat-resistant EGODRIFT Stickerbomb design, to add the finishing touch to your 550 class heli build.

Each motor comes with mounting screws and an (optional) screw for additional securing of the bell.

Please note:Due to the modified base (see diagram) the 4025HS shaft kits will NOT fit the new 4025HT motors! The available 6x32mm shaft for the 4025HT will fit the Kraken 580.

EGODRIFT Tengu 4025HT Series Product Dimensions
SPECIFICATIONS
  • Manufacturer: EGODRIFT
  • Stator size: 4025
  • Motor configuration: 12N10P
  • Motor weight: Cool operating temperature
  • Base Colour: Black
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor shaft: Hardened Steel
  • Shaft diameter: 6.0 mm
  • External shaft length (mm): 32 mm
  • LiPo cells: 6S
  • Motor kV: 1190 kV
  • Stator diameter: 40 mm
  • Stator height: 25 mm
  • Stator lamination: 0.15 mm (+)
  • Body Length: 52.5mm (2.07 inch)
  • Diameter: 49.6mm (1.95 inch)
  • Screw hole diameter: 3,0 mm
  • Motor hole pattern: 25mm, 30mm
  • Idle current: TBD
  • Maximum Current: TBD
  • Maximum Power: TBD
  • Internal resistance: TBD
  • Connection: Wire / Gold plated plugs
  • Designer: Yutao Zou
